170325-5 | AMP

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, brass, tin-plated, 170325-5

Order No.: 35P3726
EAN: 4099889626650
MPN:
170325-5
Series: Positive Lock 187
AMP

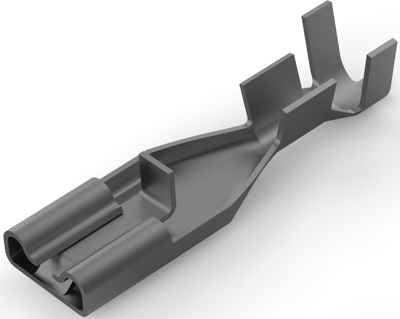

default L

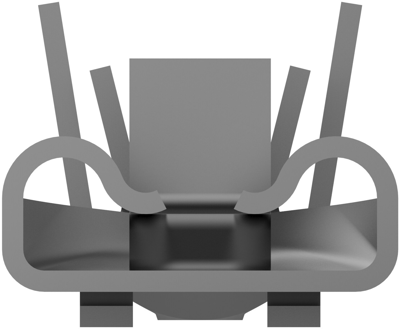

front L

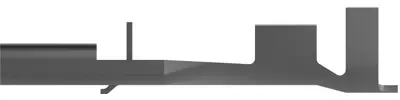

side L

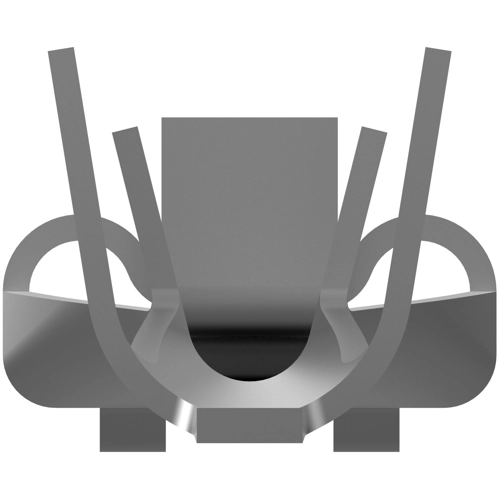

back L

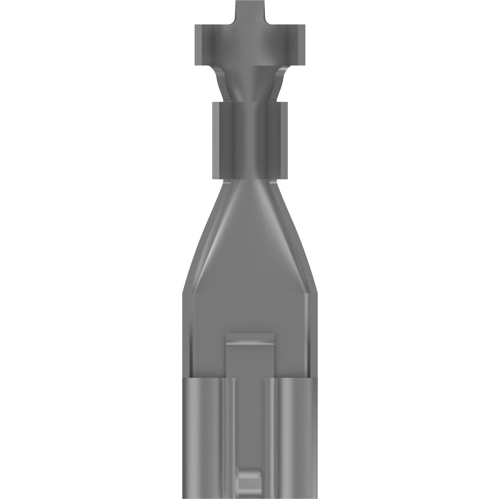

top L
Image may differ
Print
Key Specification:
Version flat plug sleeve
Suitable for 4.75 x 0.51 mm
Material brass, tin-plated
Isolated No
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.1071 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Add to Cart
Total Price:
0.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
6000 pcs.
0.1071 €
Description
Technical specifications
Download
Logistics
Compliance
Accessory

Quick disconnect, 170325-5, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Fully Insulated: No, Quick Disconnect Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.51 – 1.31 mm², Quick Disconnect Mating Tab Width: 4.75 mm, Quick Disconnect Mating Tab Thickness: 0.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 6000, Quick Disconnect Packaging Method: Strip/Reel, Comment: Air-feed Applicator should be used.
Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 20 to 16
Suitable for 4.75 x 0.51 mm
Isolated No
Length 21.6 mm
Cable cross-section 0.51 to 1.31 mm²
Material brass, tin-plated
Show similar products 0
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
