170324-2 | AMP

Name: Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.2 to 0.51 mm², AWG 24 to 20, phosphor bronze, nickel-plated, 170324-2
Brand: AMP
SKU: 35P3728
Price: 0.11 EUR
Availability: OutOfStock

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.2 to 0.51 mm², AWG 24 to 20, phosphor bronze, nickel-plated, 170324-2

Order No.: 35P3728

EAN: 4099889626674

MPN:

170324-2

Series: Positive Lock 187

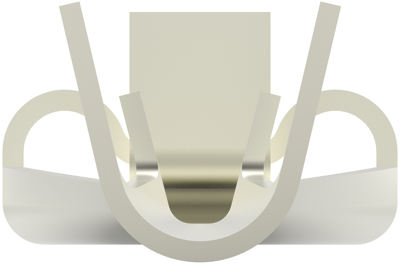

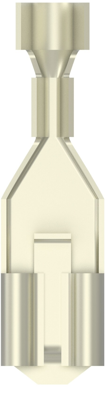

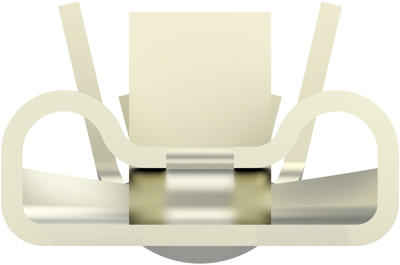

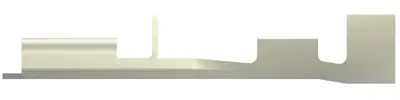

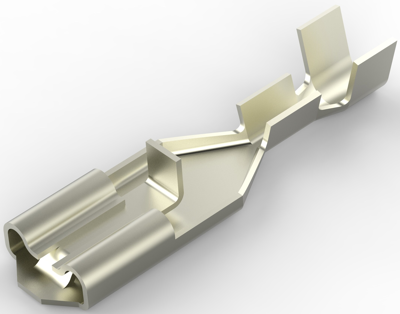

Image may differ

Key Specification:

Version flat plug sleeve

Suitable for 4.75 x 0.51 mm

Material phosphor bronze, nickel-plated

Isolated No

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1059 € *

Available: 0 pcs.

Leadtime: 27 Weeks **

Add to Cart

Total Price:

0.11 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Quick disconnect, 170324-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Fully Insulated: No, Quick Disconnect Plating Material: Nickel, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 24 – 20 AWG, Wire Size: 0.2 – .51 mm², Quick Disconnect Mating Tab Width: 4.75 mm, Quick Disconnect Mating Tab Thickness: 0.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 8000, Quick Disconnect Packaging Method: Strip/Reel, Comment: Air-feed Applicator should be used.

Technical specifications

	Connection	crimp connection
	Version	flat plug sleeve
	AWG cross-section	AWG 24 to 20
	Suitable for	4.75 x 0.51 mm
	Isolated	No
	Length	21.6 mm
	Cable cross-section	0.2 to 0.51 mm²
	Material	phosphor bronze, nickel-plated

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	US
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
