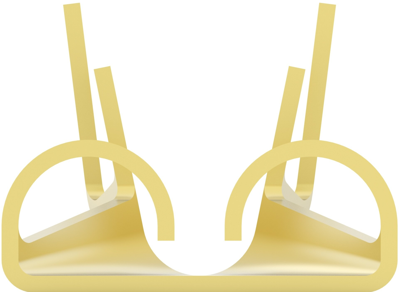

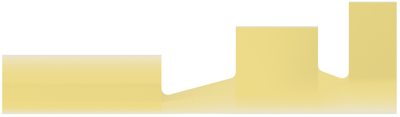

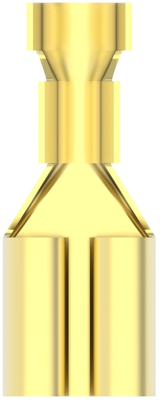

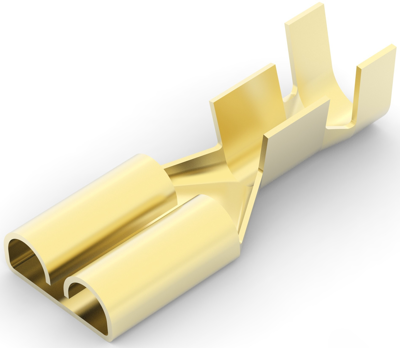

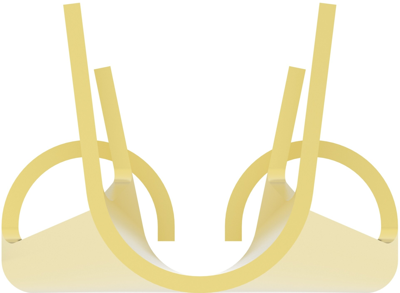

170258-1 | AMP

Name: Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.1 to 3.31 mm², AWG 14 to 12, brass, 170258-1
Brand: AMP
SKU: 34P7794
Price: 0.10 EUR
Availability: OutOfStock

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.1 to 3.31 mm², AWG 14 to 12, brass, 170258-1

Order No.: 34P7794

EAN: 4099889620160

MPN:

170258-1

Series: FASTIN-FASTON 250

Image may differ

Key Specification:

Version flat plug sleeve

Suitable for 6.35 x 0.81 mm

Material brass

Isolated No

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1000 € *

Available: 0 pcs.

Leadtime: 23 Weeks **

Add to Cart

Total Price:

0.10 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Quick disconnect, 170258-1, AMP

Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Tab-Lok, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.33 mm, Wire Size: 14 – 12 AWG, Wire Size: 2.1 – 3.31 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 5000, Quick Disconnect Packaging Method: Strip/Reel

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	US
Customs tariff number	85369040

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
