170224-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.65 to 5.26 mm², AWG 15 to 10, brass, tin-plated, 170224-2

Order No.: 34P7971
EAN: 4099889621464
MPN:
170224-2
Series: FASTON

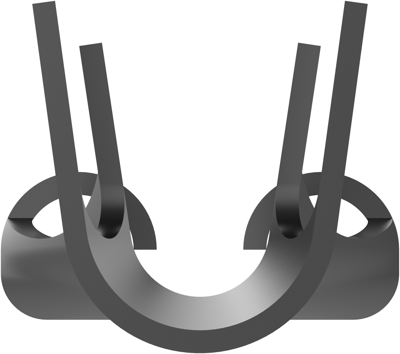

170224-2 AMP Receptacles Image 1

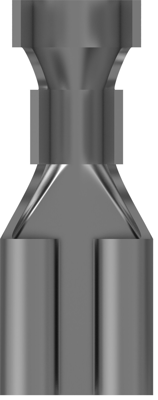

170224-2 AMP Receptacles Image 2

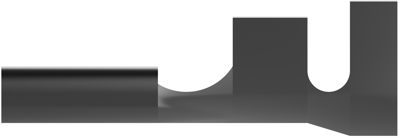

170224-2 AMP Receptacles Image 3

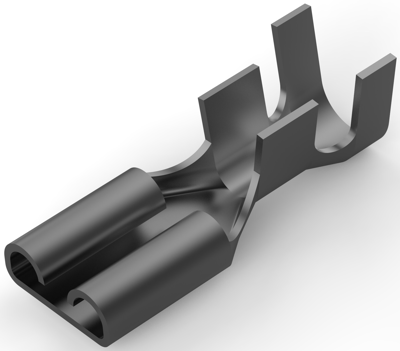

170224-2 AMP Receptacles Image 4

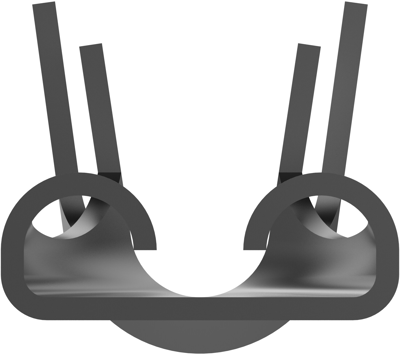

170224-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1309 € *
Available in 5 Days: 16,000 pcs. - if ordered today
Total Price:
13.09 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1309 €
250 pcs.
0.1214 €
500 pcs.
0.1131 €
1000 pcs.
0.1012 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat receptacle, 170224-2, TE Connectivity

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.43 mm, Wire Size: 15 – 10 AWG, Wire Size: 1.65 – 5.26 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 4000, Packaging Method: Strip/Reel

Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Material brass, tin-plated
AWG cross-section AWG 15 to 10
Version flat plug sleeve
Isolated No
Cable cross-section 1.65 to 5.26 mm²
Length 19.6 mm
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
