170214-2 | AMP

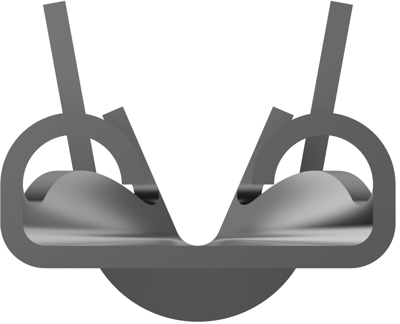

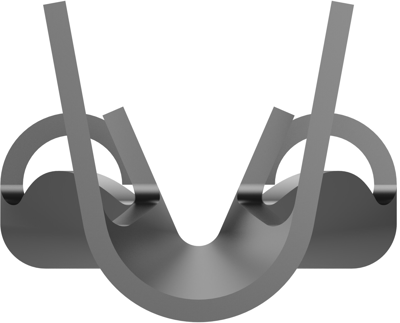

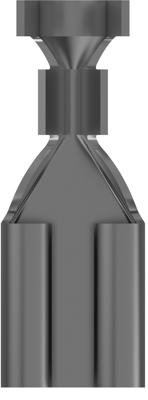

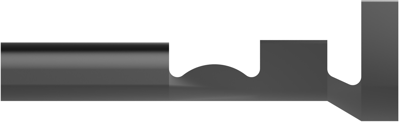

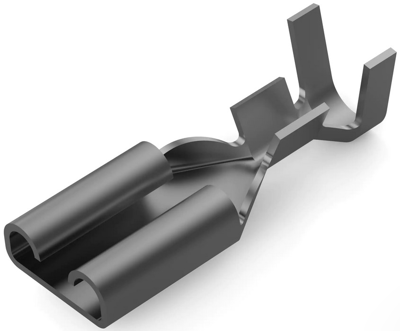

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.2 to 0.51 mm², AWG 24 to 20, Brass, tin-plated, 170214-2
Flat receptacle, 170214-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.3 mm, Wire Size: 24 – 20 AWG, Wire Size: 0.2 -0.51 mm², Mating Tab Width: 4.75 mm, Mating Tab Thickness: 0.51 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 9000, Packaging Method: Strip/Reel
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 24 to 20 | |
| Suitable for | 4.75 x 0.51 mm | |
| Isolated | No | |
| Length | 15 mm | |
| Cable cross-section | 0.2 to 0.51 mm² | |
| Material | Brass, tin-plated |
| Country of origin | US |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
