170179-2 | AMP

Name: Uninsulated flat plug sleeve, 5.21 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 170179-2
Brand: AMP
SKU: 71P3150
Availability: InStock

Uninsulated flat plug sleeve, 5.21 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 170179-2

Order No.: 71P3150

EAN: 4099891712648

MPN:

170179-2

Series: FASTON 205

Image may differ

Key Specification:

Version flat plug sleeve

Suitable for 5.21 x 0.81 mm

Material brass, tin-plated

Isolated No

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0702 € *

Available in 5 Days: 7,000 pcs. - if ordered today

Total Price:

491.47 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

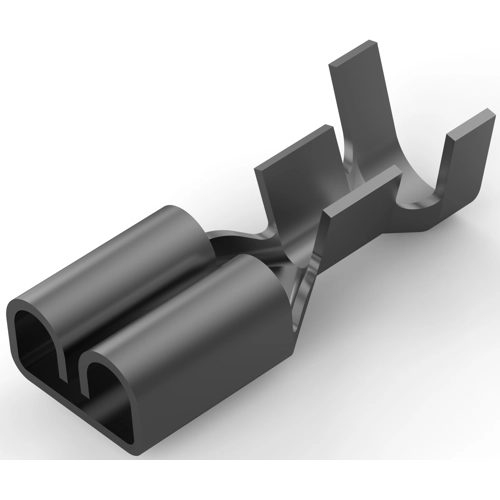

Plug sleeve, 170179-2, AMP

Quick disconnect, Receptacle, 18-14 AWG Wire size, 0.82-2.08 mm² Wire size, Mating tab width 5.21 mm, Straight, Brass.

Technical specifications

Filter	Property	Value
	Version	flat plug sleeve
	Suitable for	5.21 x 0.81 mm
	Material	brass, tin-plated
	Isolated	No
	Connection	crimp connection
	Cable cross-section	0.82 to 2.08 mm²
	AWG cross-section	AWG 18 to 14
	Length	17.5 mm
