170151-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 170151-2

Order No.: 34P7851
EAN: 4099889620535
MPN:
170151-2
Series: FASTIN-FASTON

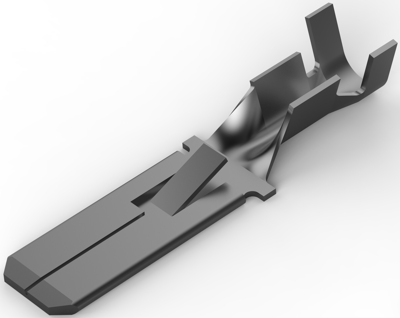

170151-2 AMP Receptacles Image 1

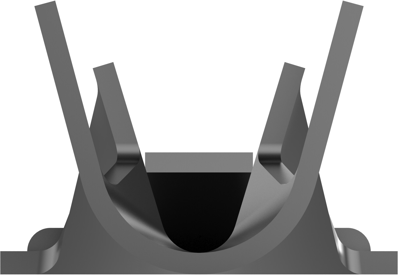

170151-2 AMP Receptacles Image 2

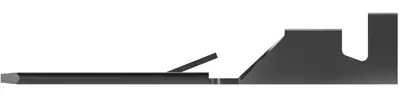

170151-2 AMP Receptacles Image 3

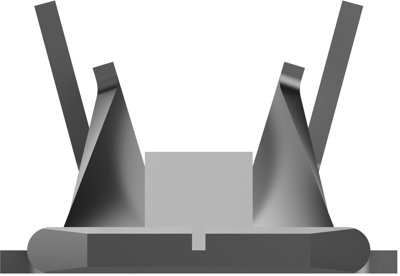

170151-2 AMP Receptacles Image 4

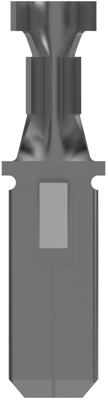

170151-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1261 € *
Available in 5 Days: 10,500 pcs. - if ordered today
Total Price:
12.61 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1261 €
250 pcs.
0.1166 €
500 pcs.
0.1083 €
1000 pcs.
0.0976 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 170151-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 3500, Quick Disconnect Packaging Method: Strip/Reel

Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Material brass, tin-plated
AWG cross-section AWG 18 to 14
Version flat plug sleeve
Isolated No
Cable cross-section 0.82 to 2.08 mm²
Length 30.3 mm
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
