170095-1 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, phosphor bronze, tin-plated, 170095-1

Order No.: 60F113
MPN:
170095-1
Series: FASTON 250

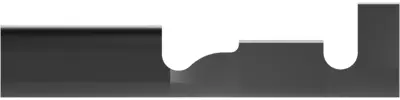

170095-1 AMP Receptacles Image 1

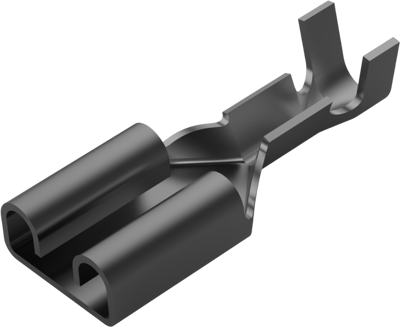

170095-1 AMP Receptacles Image 2

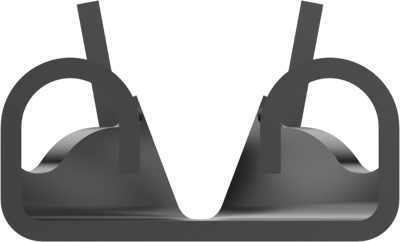

170095-1 AMP Receptacles Image 3

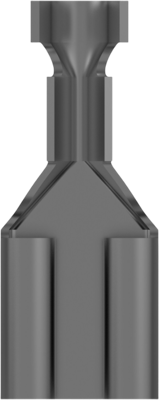

170095-1 AMP Receptacles Image 4

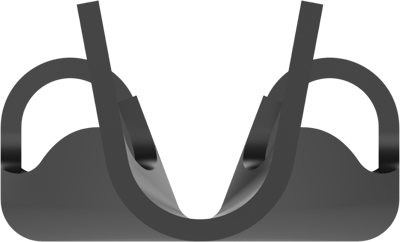

170095-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.6902 € *
Available in 5 Days: 5,750 pcs. - if ordered today
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6902 €
10 pcs.
0.5474 €
50 pcs.
0.4284 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat plug sleeve, 170095-1, AMP

Quick Disconnect Receptacle, 22-18 AWG, 0.32-0.82 mm² Wire, 6.35 mm Tab Width, Straight, Phosphor Bronze, Tin Plating, FASTON 250+.

Technical specifications
Material phosphor bronze, tin-plated
Version flat plug sleeve
Length 20.6 mm
Isolated No
Cable cross-section 0.32 to 0.82 mm²
Connection crimp connection
Suitable for 6.35 x 0.81 mm
AWG cross-section AWG 22 to 18
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
