170037-2 | AMP

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, brass, tin-plated, 170037-2

Order No.: 34P7942
EAN: 4099889621211
MPN:
170037-2
Series: FASTON

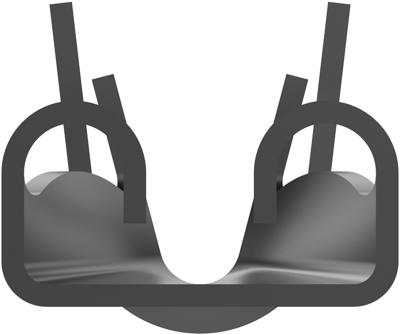

170037-2 AMP Receptacles Image 1

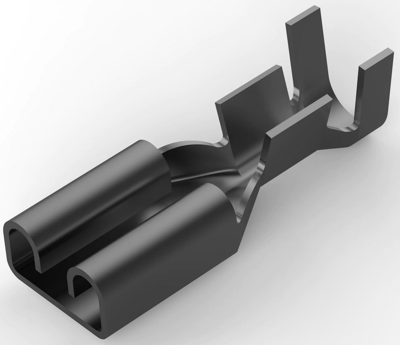

170037-2 AMP Receptacles Image 2

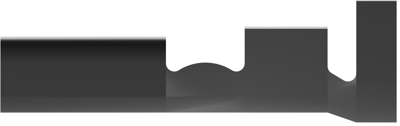

170037-2 AMP Receptacles Image 3

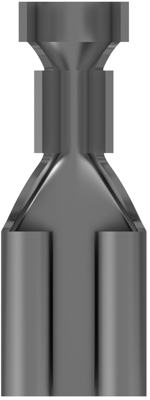

170037-2 AMP Receptacles Image 4
170037-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.0571 € *
Available in 5 Days: 72,000 pcs. - if ordered today
Total Price:
5.71 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0571 €
250 pcs.
0.0524 €
500 pcs.
0.0488 €
1000 pcs.
0.0440 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 170037-2, AMP

Quick disconnect, Receptacle, Wire size: 20- 16 AWG, Wire size: 0.51- 1.31 mm², Mating tab width 0.187 in [4.75 mm], Straight, Brass, FASTON 180

Technical specifications
Filter Property Value
Suitable for 4.75 x 0.51 mm
Material brass, tin-plated
AWG cross-section AWG 20 to 16
Version flat plug sleeve
Isolated No
Cable cross-section 0.51 to 1.31 mm²
Length 16.6 mm
Connection crimp connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
