165565-1 | AMP
Insulated flat plug sleeve, 2.79 x 0.51 mm, 0.3 to 1.5 mm², AWG 22 to 16, brass, tin-plated, red, 165565-1
Unit Price (€ / pc.)
0.9639 € *
Available: 350 pcs.
Available in 5 Days: 24,618 pcs. - if ordered today
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9639 €
10 pcs.
0.8925 €
25 pcs.
0.8330 €
50 pcs.
0.7616 €
*incl. VAT plus shipping costs
Subject to prior sale

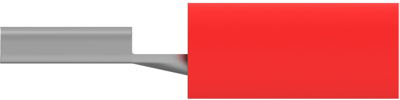

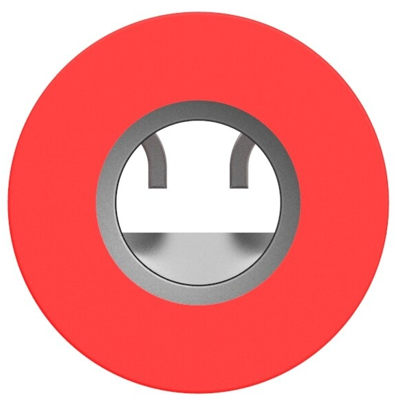

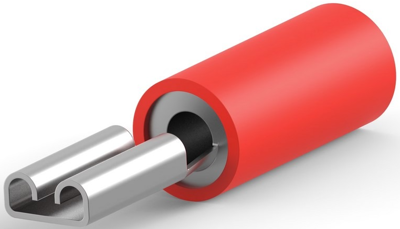

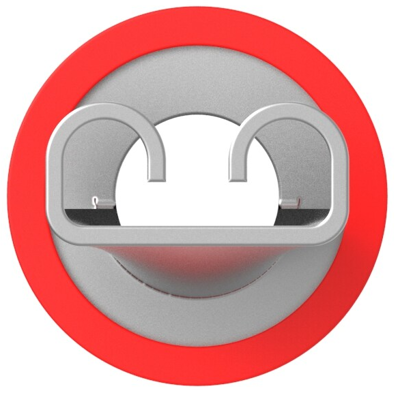

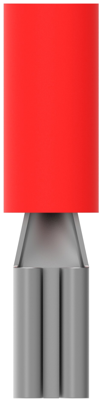

Receptacle, 165565-1, AMP
Receptacle, insulated, for conductor cross-section 0.3 to 1.5 mm², made of brass; Insulation: PVC or nylon, red.
Technical attributes (type, mating width x mating thickness, insulation type, contact material): 565-1, 2.8 x 0.5 mm, nylon, tinned brass.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 16 | |
| Length | 19.8 mm | |
| Insulation colour | red | |
| Material | brass, tin-plated | |
| Isolated | Yes | |
| Suitable for | 2.79 x 0.51 mm | |
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| Cable cross-section | 0.3 to 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
