160862-8 | AMP

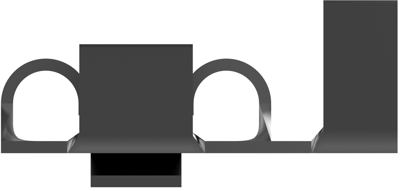

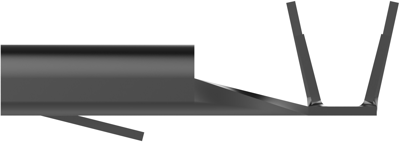

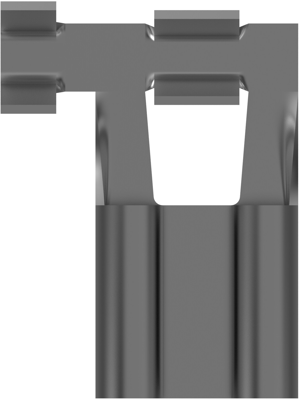

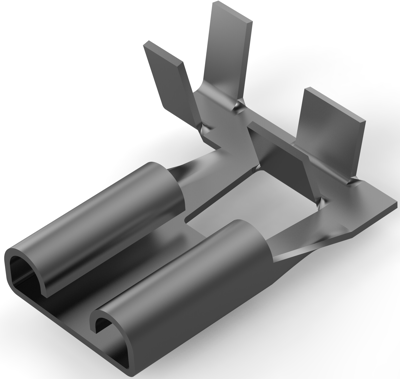

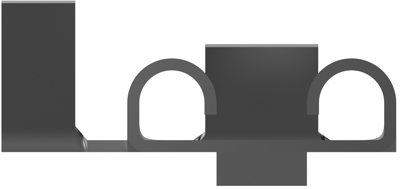

Uninsulated flat plug sleeve, 7.92 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, phosphor bronze, tin-plated, 160862-8
Order No.: 34P8421
EAN: 4099889624083
MPN:
160862-8
Unit Price (€ / pc.)
0.2261 € *
Available in 5 Days: 165,000 pcs. - if ordered today
Total Price:
22.61 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2261 €
250 pcs.
0.2083 €
500 pcs.
0.1940 €
1000 pcs.
0.1749 €
*incl. VAT plus shipping costs
Subject to prior sale
Quick disconnect, 160862-8, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 17 – 13 AWG, Wire Size: 1.03 – 2.62 mm², Quick Disconnect Mating Tab Width: 7.92 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 2500, Quick Disconnect Packaging Method: Strip/Reel, Comment: For Mini Applicator.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 7.92 x 0.81 mm | |
| Material | phosphor bronze, tin-plated | |
| AWG cross-section | AWG 17 to 13 | |
| Version | flat plug sleeve | |
| Isolated | No | |
| Cable cross-section | 1.03 to 2.62 mm² | |
| Length | 16.8 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
