160786-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.1 to 3.31 mm², AWG 14 to 12, phosphor bronze, tin-plated, 160786-2

Order No.: 34P7834
EAN: 4099889620443
MPN:
160786-2
Series: FASTIN-FASTON

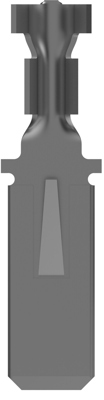

160786-2 AMP Receptacles Image 1

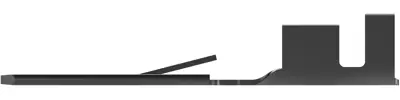

160786-2 AMP Receptacles Image 2

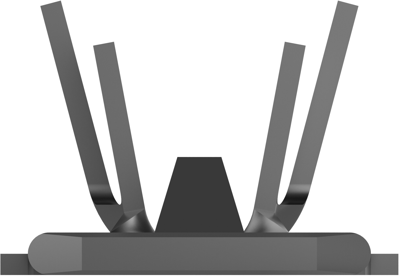

160786-2 AMP Receptacles Image 3

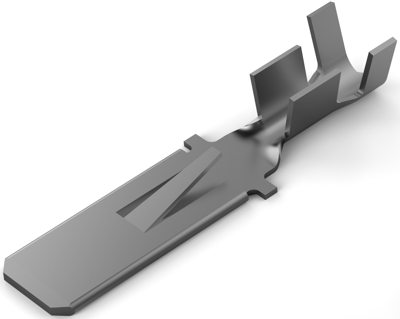

160786-2 AMP Receptacles Image 4

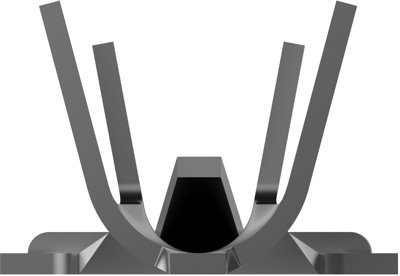

160786-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2999 € *
Available in 5 Days: 63,000 pcs. - if ordered today
Total Price:
179.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
0.2999 €

Quick disconnect, 160786-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 14 – 12 AWG, Wire Size: 2.1 – 3.31 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 3500, Quick Disconnect Packaging Method: Strip/Reel, Comment: Tab for crimping Tab Housing Part No. 927203.,With locking hole.

Technical specifications
Suitable for 6.35 x 0.81 mm
Connection crimp connection
Isolated No
Material phosphor bronze, tin-plated
AWG cross-section AWG 14 to 12
Version flat plug sleeve
Length 28 mm
Cable cross-section 2.1 to 3.31 mm²
Logistics
Customs tariff number 85369095
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
