160626-2 | AMP

Uninsulated flat plug sleeve, 2.8 x 0.81 mm, 0.5 to 1.0 mm², AWG 20 to 17, brass, tin-plated, 160626-2

Order No.: 05F4906
EAN: 4099889618211
MPN:
160626-2
0-0160626-2
Series: FASTON

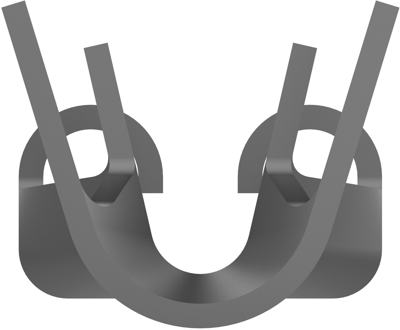

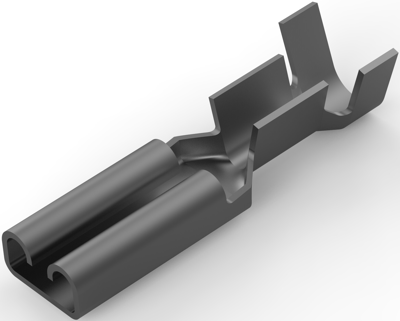

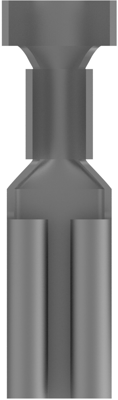

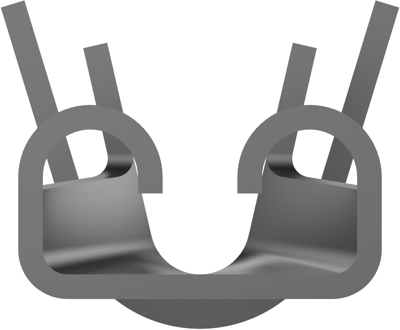

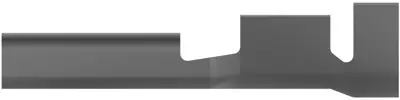

160626-2 AMP Receptacles Image 1
160626-2 AMP Receptacles Image 2
160626-2 AMP Receptacles Image 3
160626-2 AMP Receptacles Image 4
160626-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.4284 € *
Available: 3,188 pcs.
Available in 5 Days: 11,847 pcs. - if ordered today
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
10 pcs.
0.4046 €
25 pcs.
0.3689 €
50 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle, 160626-2, AMP

Receptacle without insulation, made of brass.

Mating width 2.8 mm, type - 0160.

Mating thickness: 0.8 mm. Dimensions: E 6.3, L 14 mm.

Technical attributes (type, for conductor cross-section, contact finish): 0-0160626-2, 0.5 to 1.0 mm², tinned.

Technical specifications
Filter Property Value
Connection crimp connection
Material brass, tin-plated
Suitable for 2.8 x 0.81 mm
Nominal size according to DIN DIN 46247
Version flat plug sleeve
Isolated No
AWG cross-section AWG 20 to 17
Length 14 mm
Cable cross-section 0.5 to 1.0 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
