160314-5 | AMP
Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.81 to 6.35 mm², AWG 11 to 10, phosphor bronze, tin-plated, yellow, 160314-5
Unit Price (€ / pc.)
1.2852 € *
Available in 5 Days: 8,370 pcs. - if ordered today
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2852 €
10 pcs.
1.1900 €
25 pcs.
1.1067 €
50 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale

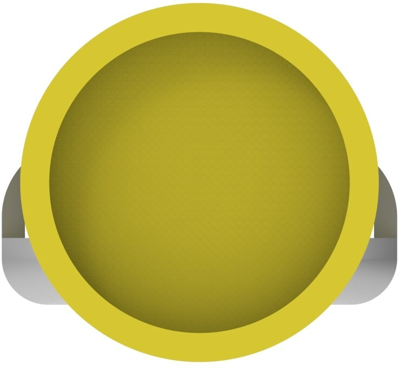

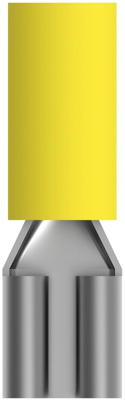

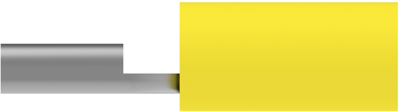

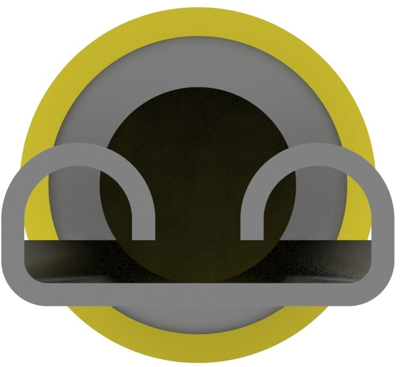

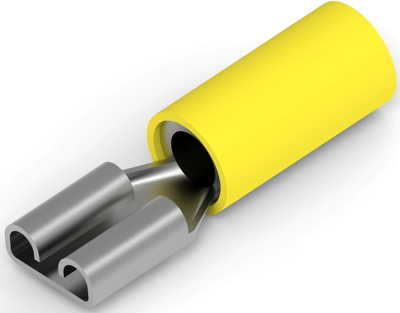

Flat receptacle, 160314-5, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: Compression, Wire Insulation Support: With, Overall Length: 26 mm, Wire Size: 11 – 10 AWG, Wire Size: 4 – 6 mm², Wire Size: 8226 – 12066 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, Packaging Quantity: 500, Packaging Method: Box, Barrel Color: Yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 6.35 x 0.81 mm | |
| Material | phosphor bronze, tin-plated | |
| AWG cross-section | AWG 11 to 10 | |
| Version | flat plug sleeve | |
| Isolated | Yes | |
| Cable cross-section | 0.81 to 6.35 mm² | |
| Insulation colour | yellow | |
| Length | 26 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
