160314-2 | AMP

Insulated flat plug sleeve, 6.35 x 0.81 mm, 4.0 to 6.0 mm², AWG 11 to 10, brass, tin-plated, yellow, 160314-2

Order No.: 38P7531
EAN: 4099889628630
MPN:
160314-2
Series: FASTON

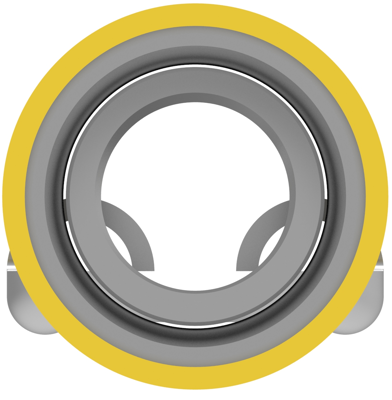

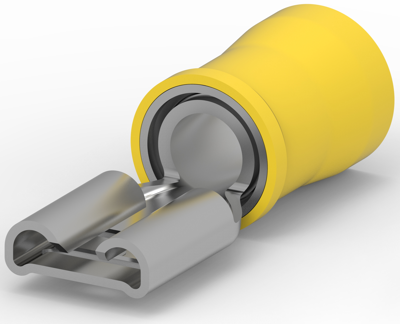

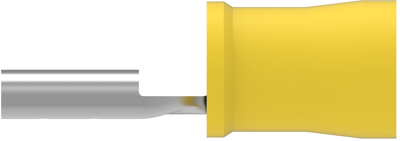

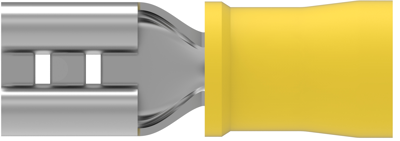

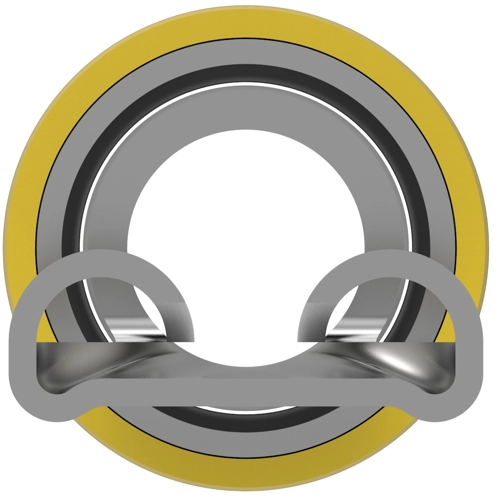

160314-2 AMP Receptacles Image 1
160314-2 AMP Receptacles Image 2
160314-2 AMP Receptacles Image 3
160314-2 AMP Receptacles Image 4
160314-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
1.0710 € *
Available: 53 pcs.
Available in 5 Days: 6,275 pcs. - if ordered today
Total Price:
1.07 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0710 €
10 pcs.
0.9758 €
50 pcs.
0.8925 €
100 pcs.
0.7973 €
700 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle, 160314-2, AMP

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Tin, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Barrel Type: Closed, Wire Insulation Support: With, Overall Length: 26 mm, Wire Size: 11 – 10 AWG, Wire Size: 4 – 6 mm², Wire Size: 8226 – 12066 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, Packaging Quantity: 500, Packaging Method: Bag, Barrel Color: Yellow

Technical Data

  • AWG conductor cross-section: AWG 11.5 to 10
  • Material: Brass, tin-plated
  • Length: 26 mm
  • Isolated: Yes
Technical specifications
Filter Property Value
Version flat plug sleeve
Suitable for 6.35 x 0.81 mm
Material brass, tin-plated
Isolated Yes
Insulation colour yellow
Connection crimp connection
Cable cross-section 4.0 to 6.0 mm²
AWG cross-section AWG 11 to 10
Nominal size according to DIN DIN 1787
Length 26 mm
Logistics
Property Value
Country of origin PT
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
