156666-1 | AMP
Insulated flat plug sleeve, 6.3 x 0.81 mm, 1.04 to 2.62 mm², AWG 16 to 14, brass, tin-plated, blue, 156666-1
Unit Price (€ / pc.)
1.8088 € *
Available: 142 pcs.
Available in 5 Days: 2,330 pcs. - if ordered today
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6779 €
25 pcs.
1.5708 €
50 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

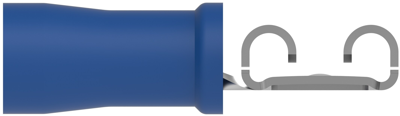

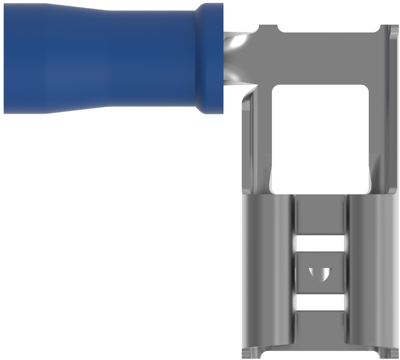

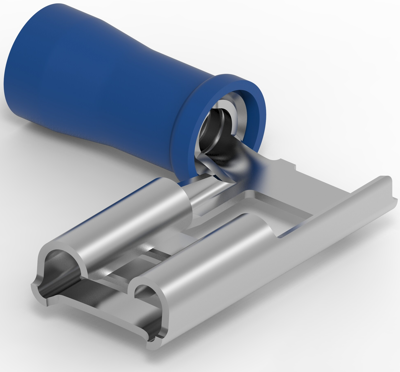

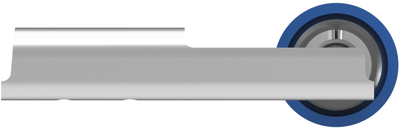

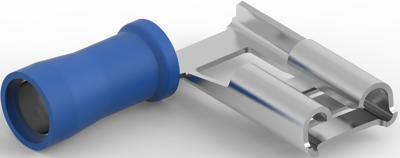

Receptacle, 156666-1, AMP
Receptacle, angled, insulated. Made of tinned brass; Insulation (PVC)/for rated cross-section: blue/1.2 to 2.5 mm².
Technical attributes:
Type: 0 - 0156666 - 1, mating width, mating thickness: 6.3 x 0.8 mm, color: blue.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Material | brass, tin-plated | |
| Suitable for | 6.3 x 0.81 mm | |
| Insulation colour | blue | |
| Version | flat plug sleeve | |
| Isolated | Yes | |
| AWG cross-section | AWG 16 to 14 | |
| Length | 18.29 mm | |
| Cable cross-section | 1.04 to 2.62 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
