154717-4 | AMP

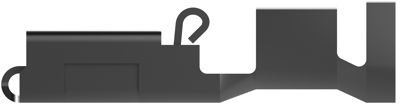

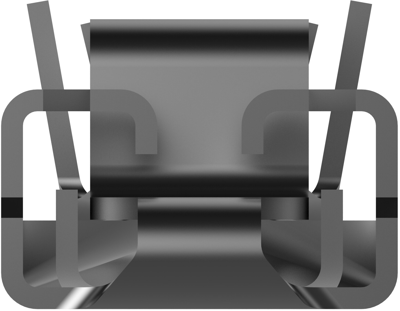

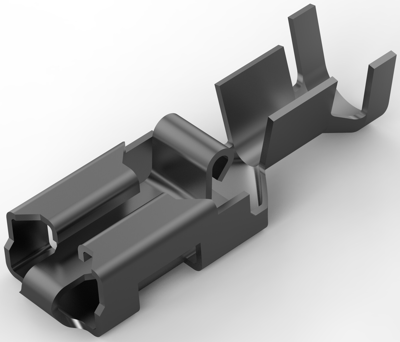

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.62 to 4.17 mm², AWG 13 to 11, Phosphor bronze, tin-plated, 154717-4
Flat receptacle, 154717-4, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 13 – 11 AWG, Wire Size: 2.62 – 4.17 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 1500, Packaging Method: Strip/Reel, Comment: FLK-Wire: Normal Wire
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 13 to 11 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 22.5 mm | |
| Cable cross-section | 2.62 to 4.17 mm² | |
| Material | Phosphor bronze, tin-plated |
| Country of origin | NL |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
