150205-2 | AMP

Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.2 to 0.51 mm², AWG 24 to 20, brass, 150205-2

Order No.: 34P8192
EAN: 4099889622201
MPN:
150205-2
Series: FASTON

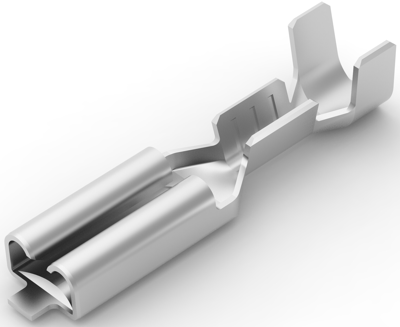

150205-2 AMP Receptacles Image 1

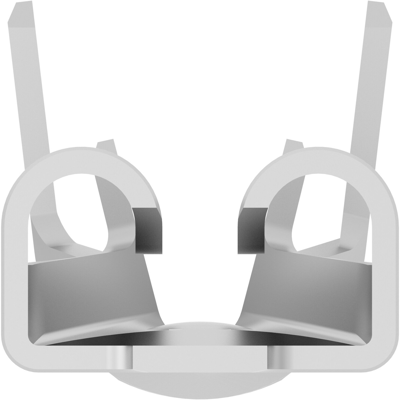

150205-2 AMP Receptacles Image 2

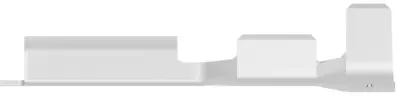

150205-2 AMP Receptacles Image 3

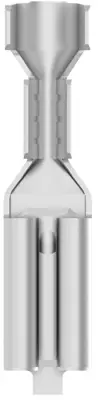

150205-2 AMP Receptacles Image 4
150205-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1880 € *
Available in 5 Days: 8,238 pcs. - if ordered today
Total Price:
18.80 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1880 €
250 pcs.
0.1737 €
500 pcs.
0.1618 €
1000 pcs.
0.1464 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 150205-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 250 V, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 24 – 20 AWG, Wire Size: 0.2 – .51 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 500, Quick Disconnect Packaging Method: Bag, Line: FASTON .110

Technical specifications
Filter Property Value
Suitable for 2.8 x 0.51 mm
Material brass
AWG cross-section AWG 24 to 20
Version flat plug sleeve
Isolated No
Cable cross-section 0.2 to 0.51 mm²
Length 15.37 mm
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
