141352-4 | AMP

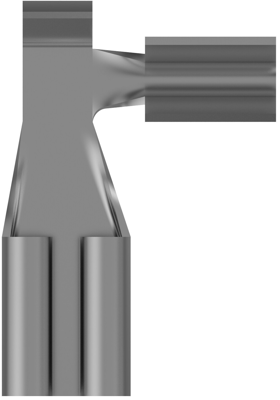

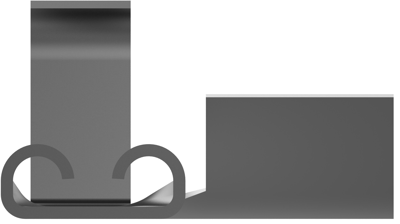

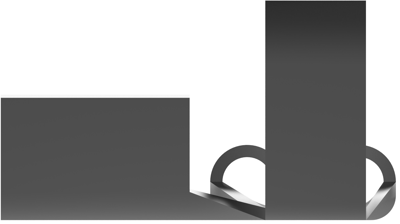

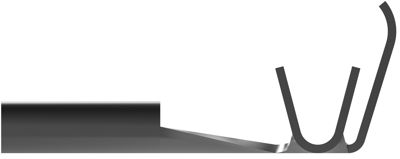

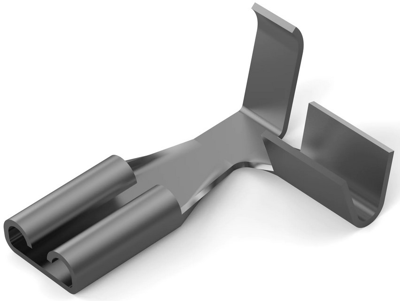

Uninsulated flat plug sleeve, 2.8 x 0.66 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, 141352-4
Unit Price (€ / pc.)
0.0916 € *
Available in 5 Days: 7,500 pcs. - if ordered today
Quick disconnect, 141352-4, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.66 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 7500, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 2.8 x 0.66 mm | |
| Material | brass, tin-plated | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 18 | |
| Isolated | No | |
| Length | 10.5 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
