141352-1 | AMP

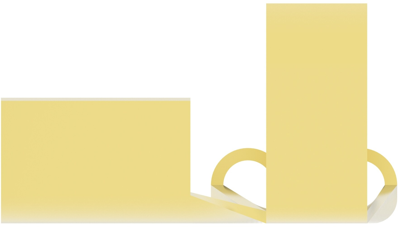

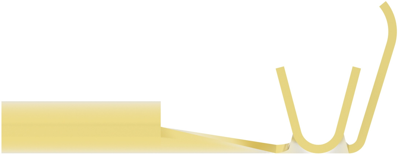

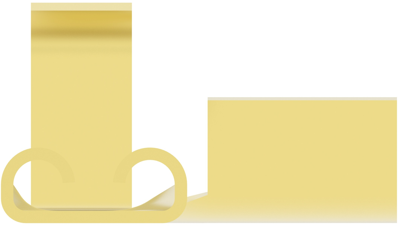

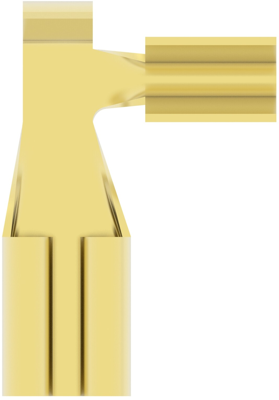

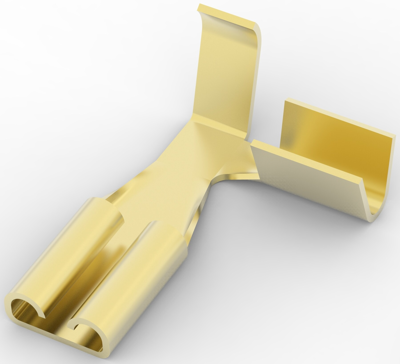

Uninsulated flat plug sleeve, 2.8 x 0.38 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, 141352-1
Unit Price (€ / pc.)
0.0524 € *
Available: 0 pcs.
Available in 5 Days: 74,250 pcs.
Leadtime: 1 Week **
Total Price:
0.05 € *
Price list
Quantity
Price per unit*
7500 pcs.
0.0524 €
22500 pcs.
0.0488 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 141352-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.38 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 7500, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 18 | |
| Suitable for | 2.8 x 0.38 mm | |
| Isolated | No | |
| Length | 10.5 mm | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
