140802-2 | AMP

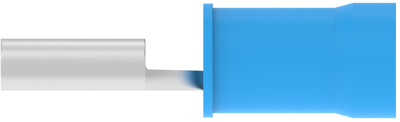

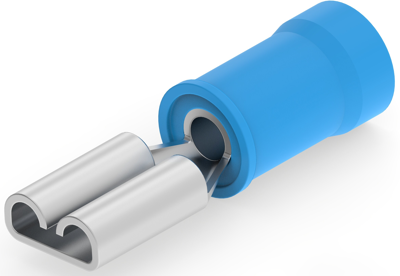

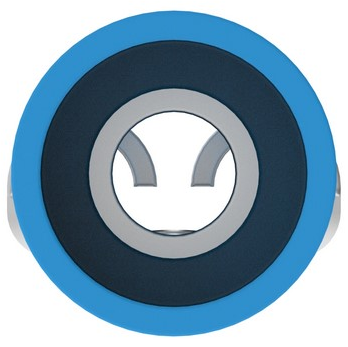

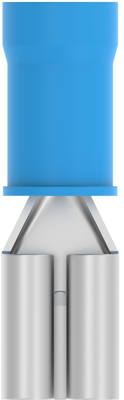

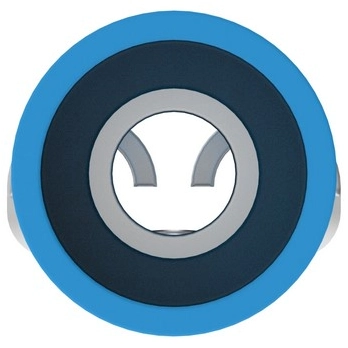

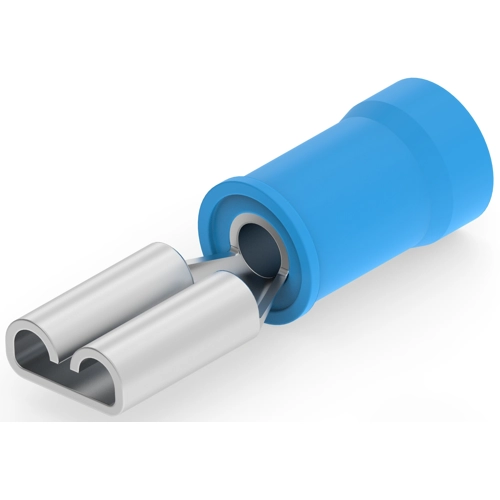

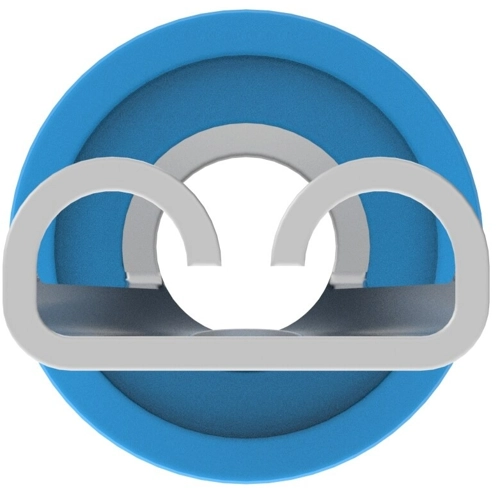

Insulated flat plug sleeve, 5 x 0.8 mm, 1.3 to 2.0 mm², AWG 16 to 13.5, brass, tin-plated, blue, 140802-2
Unit Price (€ / pc.)
3.7485 € *
Available in 5 Days: 15,049 pcs. - if ordered today
Total Price:
3.75 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7485 €
10 pcs.
3.4867 €
25 pcs.
3.2487 €
50 pcs.
2.9512 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat receptacle, 140802-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Overall Length: 21.6 mm, Wire Size: 16 – 13.5 AWG, Wire Size: 1.3 – 2 mm², Wire Size: 2426 – 4914 CMA, Mating Tab Width: 5 mm, Operating Temperature Range: 105 °C, Packaging Quantity: 500, Packaging Method: Box, Barrel Color: Blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Cable cross-section | 1.3 to 2.0 mm² | |
| Version | flat plug sleeve | |
| Connection | crimp connection | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 16 to 13.5 | |
| Suitable for | 5 x 0.8 mm | |
| Length | 21.6 mm | |
| Insulation colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
