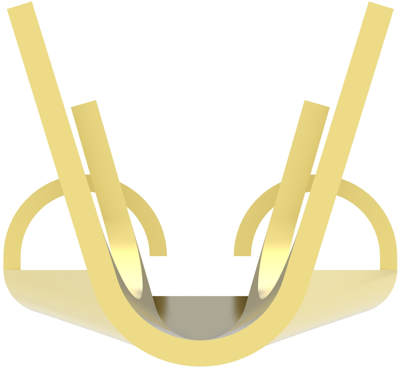

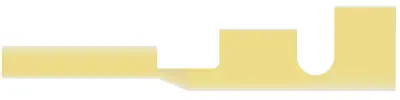

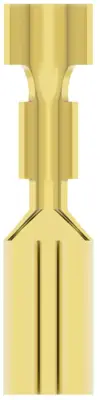

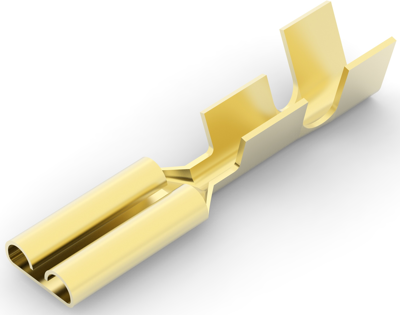

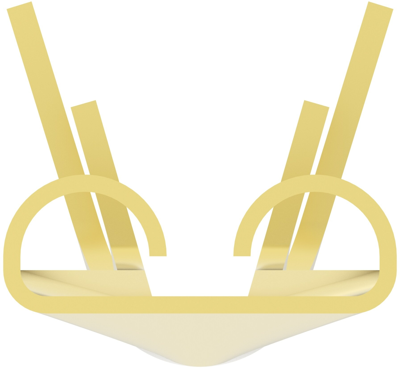

140717-1 | AMP
Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, 140717-1
Unit Price (€ / pc.)
0.0666 € *
Available in 5 Days: 60,000 pcs. - if ordered today
Total Price:
6.66 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0666 €
250 pcs.
0.0619 €
500 pcs.
0.0571 €
1000 pcs.
0.0524 €
*incl. VAT plus shipping costs
Subject to prior sale
Quick disconnect, 140717-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 2.8 mm, Quick Disconnect Mating Tab Thickness: 0.51 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 10000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 2.8 x 0.51 mm | |
| Material | brass | |
| AWG cross-section | AWG 22 to 18 | |
| Version | flat plug sleeve | |
| Isolated | No | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Length | 16.1 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
