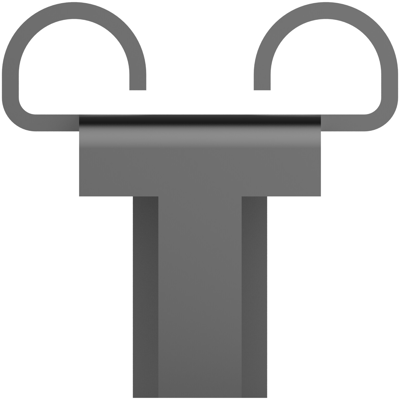

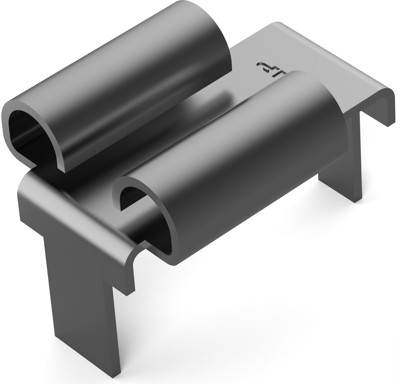

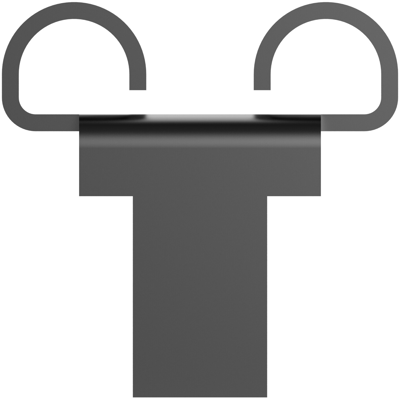

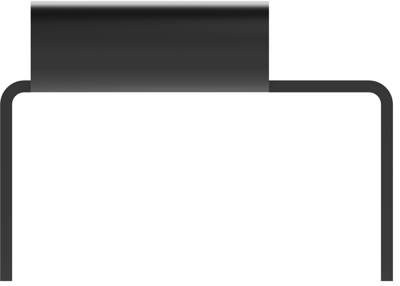

PCB Terminals, 1217107-1, AMP
FASTON: Yes, Terminates To: Printed Circuit Board, Connection Capacity: Single, Stud Hole: No, Terminal Angle: 90°, Plating Thickness: 2.03 µm, PCB Terminal Plating Material: Tin, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, PCB Terminal Terminal Type: Receptacle, Terminal Size: 6.35, PCB Terminal Terminal Orientation: Flag, PCB Terminal Termination Method: Through Hole - Solder, Wire Insulation Support: Without, PCB Terminal PCB Thickness (Recommended): 1.57 mm, PCB Terminal Mating Tab Width: 6.35 mm, PCB Terminal Mating Tab Thickness: 0.51 mm, Height Above PC Board: 2.3 mm, Receptacle Terminal Stock Thickness: 0.3 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -30-110 °C, CSA Certified: Yes, Packaging Quantity: 3000, PCB Terminal Packaging Method: Reel
