1217080-1 | AMP
Receptacles, Straight, Solder pin, false
Images may differ
Unit Price (€ / pc.)
0.1702 € *
Available: 2,770 pcs.
Leadtime: 20 Weeks **
Total Price:
3.40 € *
Quantity
Price per unit*
20 pcs.
0.1702 €
50 pcs.
0.1535 €
200 pcs.
0.1392 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

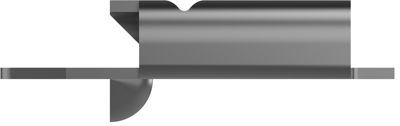

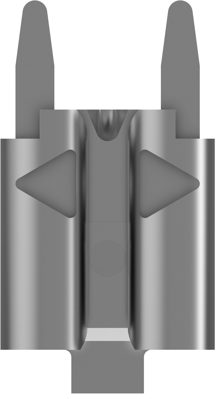

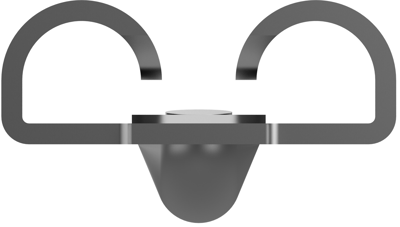

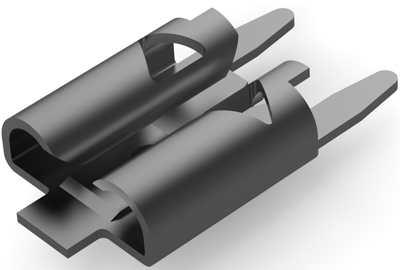

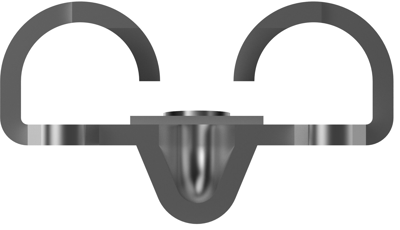

Receptacles for PCB mounting, type TE Connectivity/AMP 0-121.
Mating width: 6.3 mm. Mating thickness: 0.8 mm, made of tinned brass.
Type: 0-1217080-1, receptacle
Technical specifications
| Connection | solder connection | |
| Version | flat plug sleeve | |
| Suitable for | 6.3 x 0.8 mm | |
| Isolated | No | |
| Length | 8.38 mm | |
| Material | Brass, tin plated |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
