100495-1 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.5 to 1.5 mm², AWG 20 to 16, brass, 100495-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0881 € *
Available in 12 Days: 96,000 pcs. - if ordered today
Total Price:
0.88 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0881 €
50 pcs.
0.0821 €
100 pcs.
0.0762 €
250 pcs.
0.0690 €
*incl. VAT plus shipping costs
Subject to prior sale

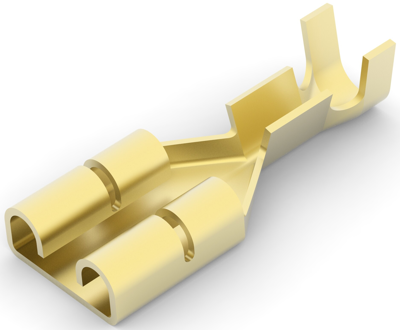

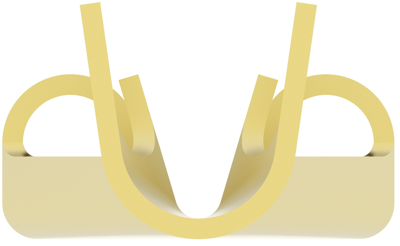

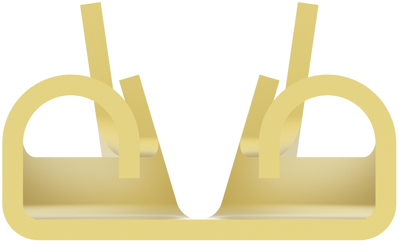

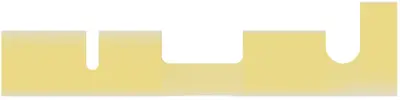

Plug sleeve, 100495-1, AMP
Quick disconnect, Receptacle, 16-20 AWG Wire size, 0.5-1.5 mm² Wire size, Mating tab width 6.35 mm, Straight, Brass.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 0.5 to 1.5 mm² | |
| AWG cross-section | AWG 20 to 16 | |
| Length | 19.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
