1-969049-1 | AMP

Uninsulated flat plug sleeve, 0.41 to 1.31 mm², AWG 21 to 16, phosphor bronze, 1-969049-1

Order No.: 34P6398
EAN: 4099889619164
MPN:
1-969049-1

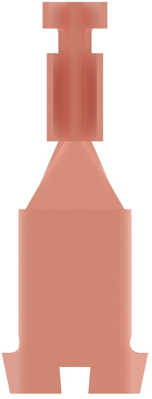

1-969049-1 AMP Receptacles Image 1

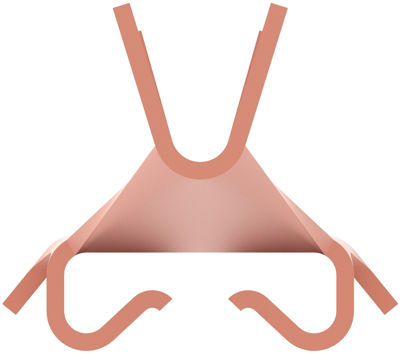

1-969049-1 AMP Receptacles Image 2

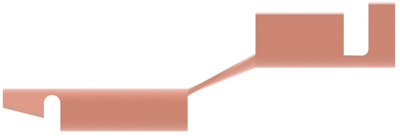

1-969049-1 AMP Receptacles Image 3

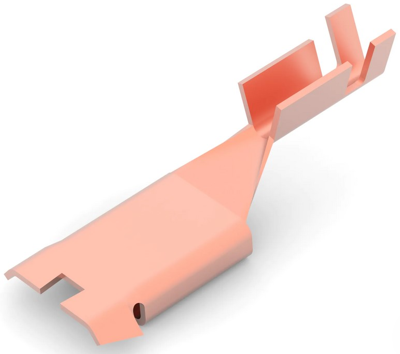

1-969049-1 AMP Receptacles Image 4

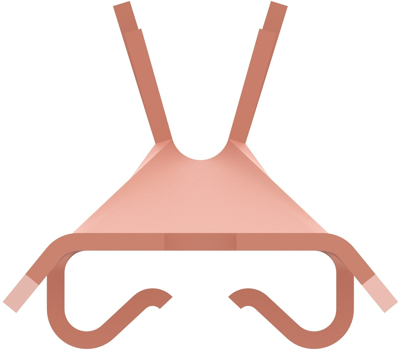

1-969049-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2321 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
2,436.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
10500 pcs.
0.2321 €

Quick disconnect, 1-969049-1, AMP

Wire/Cable Type: Magnet Wire, Insulated: No, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Stator - Straight Reverse, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.32 mm, Wire Size: 21 – 16 AWG, Wire Size: 0.41 – 1.31 mm², Insulation Requirement: Uninsulated, Packaging Quantity: 3500, Quick Disconnect Packaging Method: Reel, Line: AMPLIVAR

Technical specifications
Isolated No
AWG cross-section AWG 21 to 16
Length 19.9 mm
Cable cross-section 0.41 to 1.31 mm²
Version flat plug sleeve
Material phosphor bronze
Connection crimp connection
Logistics
Country of origin MX
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
