1-160304-8 | AMP

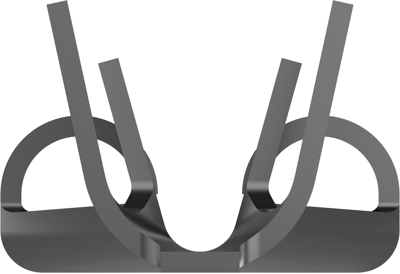

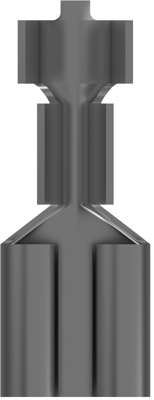

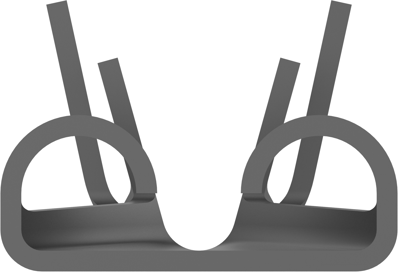

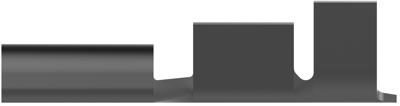

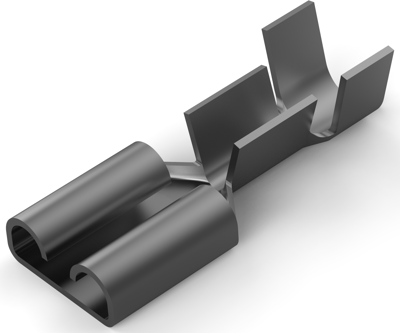

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.0 to 2.5 mm², AWG 17 to 14, Phosphor bronze, tin-plated, 1-160304-8

Order No.:  34P8171
Series:  FASTON
EAN: 4099889622027
default L
front L
side L
back L
top L
default S
front S
side S
back S
top S
Images may differ
Unit Price (€ / pc.)
0.2011 € *
Available: 0 pcs.
Available in 5 Days: 22,063 pcs.
Leadtime: 16 Weeks **
Add to Cart
Total Price:
0.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
400 pcs.
0.2011 €

Quick disconnect, 1-160304-8, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Overall Length: 20.2 mm, Wire Size: 17 – 14 AWG, Wire Size: 1 – 2.5 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 500, Quick Disconnect Packaging Method: Loose Piece/Carton, Line: Premier

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 17 to 14
Suitable for 6.35 x 0.81 mm
Isolated No
Length 20.2 mm
Cable cross-section 1.0 to 2.5 mm²
Material Phosphor bronze, tin-plated
Show similar products (0)
Country of origin CZ
Customs tariff number 85366990
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
