1-100605-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.0 to 2.5 mm², AWG 17 to 14, brass, tin-plated, 1-100605-2

Order No.: 60F153
MPN:
1-100605-2
Series: FASTON 250

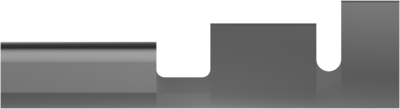

1-100605-2 AMP Receptacles Image 1

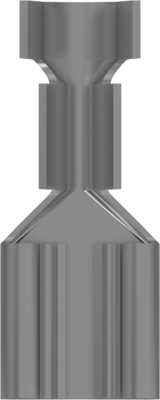

1-100605-2 AMP Receptacles Image 2

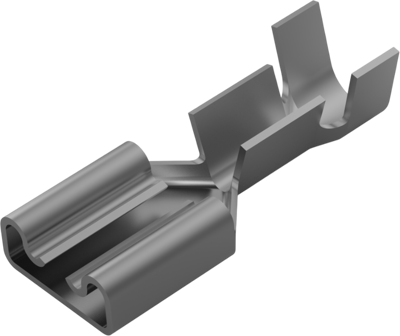

1-100605-2 AMP Receptacles Image 3

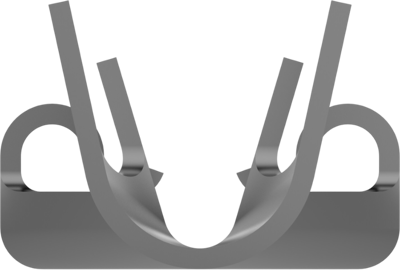

1-100605-2 AMP Receptacles Image 4

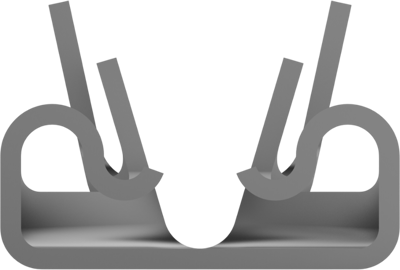

1-100605-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.1714 € *
Standard delivery time from the manufacturer is: 32 Weeks
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1714 €
50 pcs.
0.1333 €
500 pcs.
0.1047 €
1000 pcs.
0.0809 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat plug sleeve, 1-100605-2, AMP

Quick Disconnect Receptacle, 14-18 AWG, 1-2.5 mm² Wire, 1900-2974 CMA, 6.35 mm Tab Width, Straight, Brass, Pre-Tin Plating.

Technical specifications
Length 21.4 mm
Isolated No
Material brass, tin-plated
Suitable for 6.35 x 0.81 mm
Connection crimp connection
AWG cross-section AWG 17 to 14
Cable cross-section 1.0 to 2.5 mm²
Version flat plug sleeve
Logistics
Customs tariff number 85369010
Country of origin IT
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
