1-282884-1 | AMP
PCB terminal, 3 pole, pitch 5 mm, AWG 30-16, 13.5 A, cage clamp, green, 1-282884-1
Order No.: 71P1767
EAN: 4099891627119
MPN:
1-282884-1
Unit Price (€ / pc.)
6.1285 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
6.13 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1285 €
10 pcs.
5.7001 €
25 pcs.
5.3193 €
50 pcs.
4.8314 €
*incl. VAT plus shipping costs
Subject to prior sale

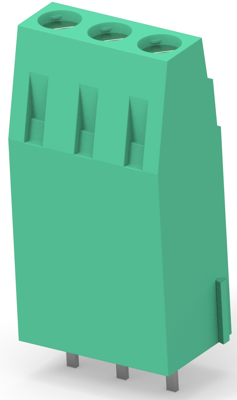

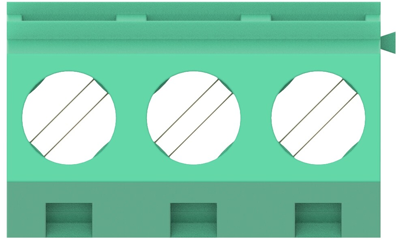

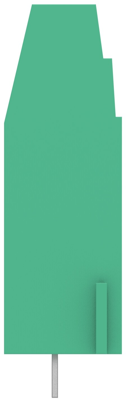

PCB Terminal, 1-282884-1, AMP
PCB Terminal block, Header, Wire-to-Board, 3 Position, 5 mm Centerline, 1 Row, Side wire entry angle, 30-16 AWG Wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Connection | cage clamp | |
| AWG cross-section | AWG 30-16 | |
| Rated voltage | 300 V | |
| Height | 28 mm | |
| Assembly | THT | |
| Width | 9.5 mm | |
| Pin number | 3 pole | |
| Colour | green | |
| Cable cross-section | 0.05-1.4 mm² | |
| Rated current | 13.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
