969973-3 | AMP

Socket housing, 6 pole, pitch 2.54 mm, straight, black, 969973-3

Order No.: 37P5996
EAN: 4099889958881
MPN:
969973-3
Series: AMPMODU

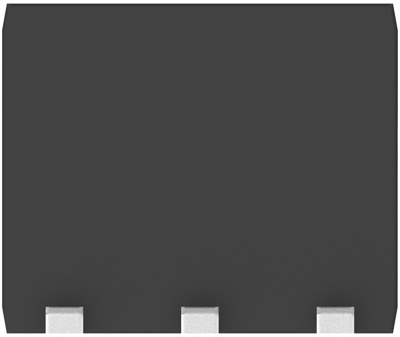

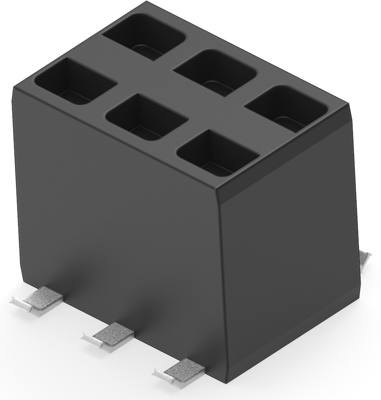

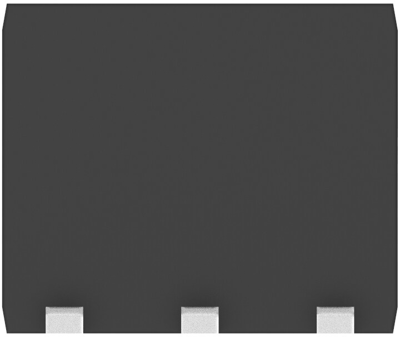

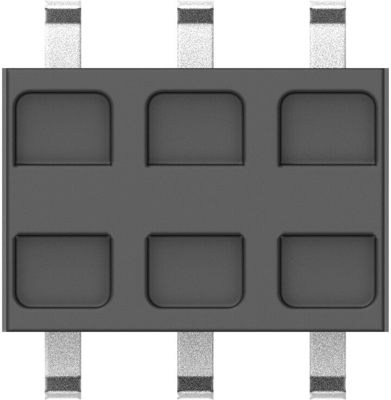

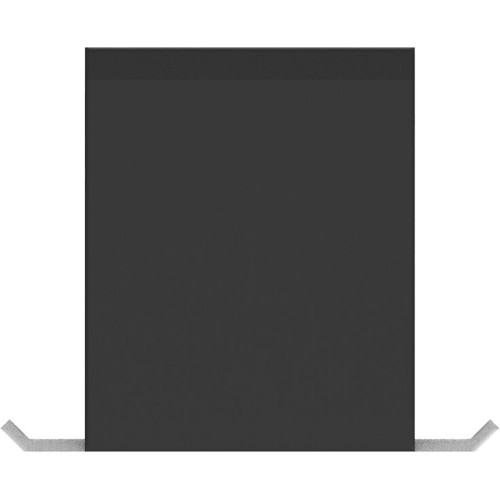

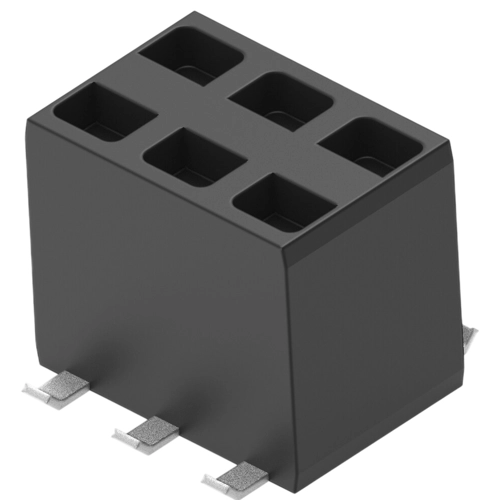

969973-3 AMP PCB Connection Systems Image 1
969973-3 AMP PCB Connection Systems Image 2
969973-3 AMP PCB Connection Systems Image 3
969973-3 AMP PCB Connection Systems Image 4
969973-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.1777 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4,573.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
2100 pcs.
2.1777 €

PCB Connection System, 969973-3, AMP

Board-to-Board, Printed Circuit Board, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: LCP (Liquid Crystal Polymer)
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 3 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 6 pole
Version socket housing
Additional parts equipped
Orientation straight
Connection SMD
Contact type socket
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
