966709-7 | AMP

Pin header, 14 pole, pitch 2.54 mm, angled, black, 966709-7

Order No.: 72P2387
EAN: 4099891740870
MPN:
966709-7

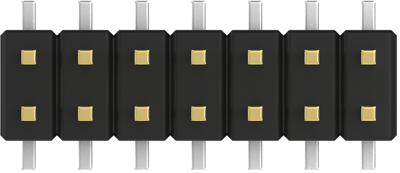

966709-7 AMP PCB Connection Systems Image 1

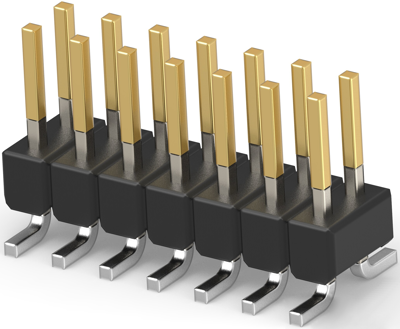

966709-7 AMP PCB Connection Systems Image 2

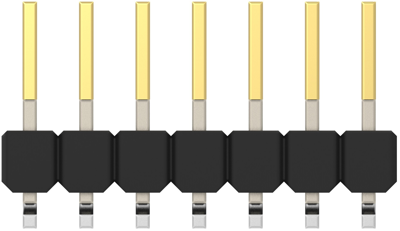

966709-7 AMP PCB Connection Systems Image 3

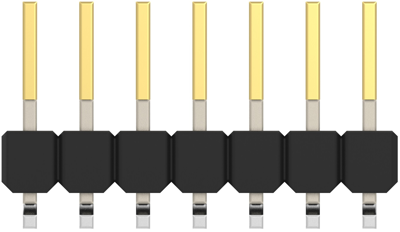

966709-7 AMP PCB Connection Systems Image 4

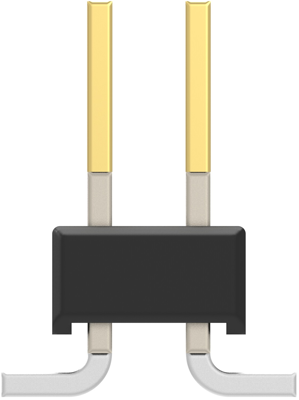

966709-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.9028 € *
Available in 5 Days: 22,000 pcs. - if ordered today
Total Price:
4.90 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9028 €
10 pcs.
4.5458 €
25 pcs.
4.2483 €
50 pcs.
3.8556 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 966709-7, AMP

PCB Mount header, Right angle, Board-to-Board, 14 Position, 2.54 mm Centerline, Breakaway, Gold, Surface mount, Signal, Black.

Technical specifications
Filter Property Value
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 3 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 14 pole
Version pin header
Additional parts equipped
Orientation angled
Connection SMD
Contact type pin
Number of rows 2
Logistics
Property Value
Country of origin PL
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
