965082-1 | AMP

Socket housing, 4 pole, pitch 2.54 mm, straight, black, 965082-1

Order No.: 37P5174
EAN: 4099889955170
MPN:
965082-1
Series: AMPMODU

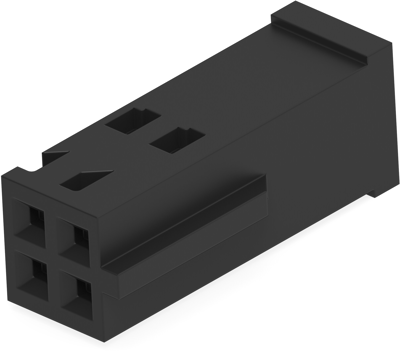

965082-1 AMP PCB Connection Systems Image 1

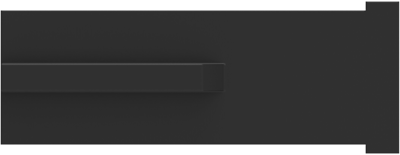

965082-1 AMP PCB Connection Systems Image 2

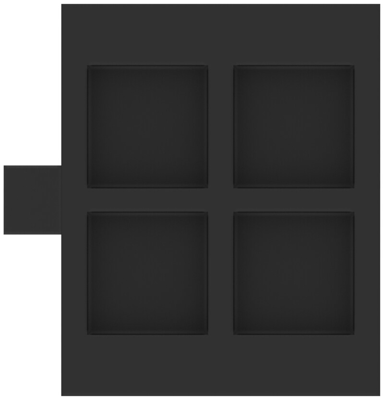

965082-1 AMP PCB Connection Systems Image 3

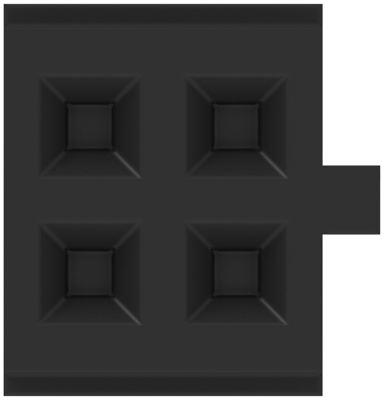

965082-1 AMP PCB Connection Systems Image 4

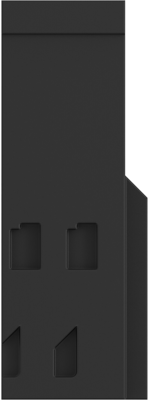

965082-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8088 € *
Available: 10 pcs.
Total Price:
9.04 € *
Price list
Quantity
Price per unit*
5 pcs.
1.8088 €
10 pcs.
1.6779 €
25 pcs.
1.5589 €
50 pcs.
1.4161 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 965082-1, AMP

Wire-to-Board, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: PBT GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version socket housing
Rated current 3 A
Orientation straight
Additional parts unequipped
Number of rows 2
Colour black
Pin number 4 pole
Connection crimp connection
Logistics
Property Value
Country of origin MX
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
