928343-3 | AMP

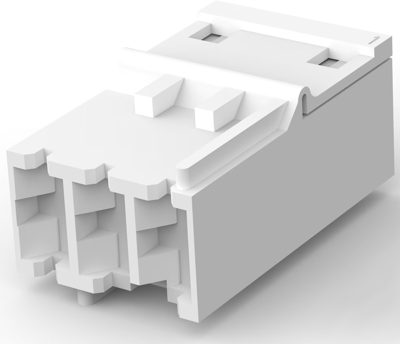

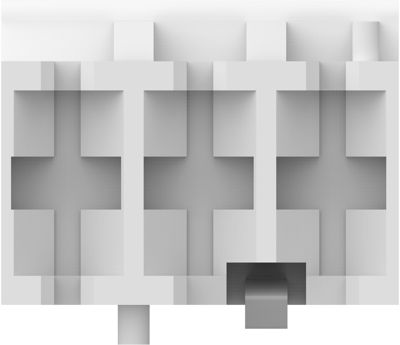

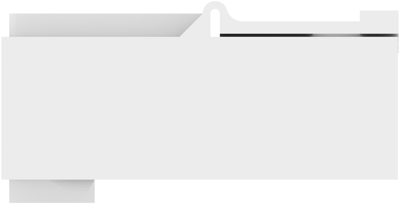

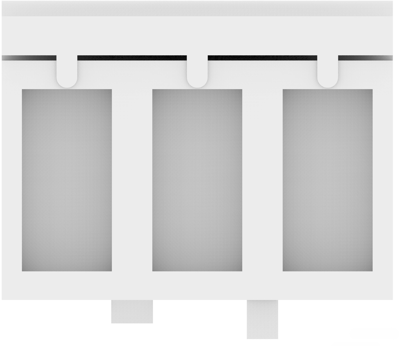

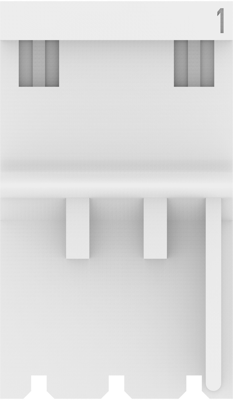

Socket housing, 3 pole, pitch 5 mm, straight, natural, 928343-3
Unit Price (€ / pc.)
0.5593 € *
Available: 250 pcs.
Available in 5 Days: 8,550 pcs. - if ordered today
Total Price:
2.80 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5593 €
10 pcs.
0.5236 €
25 pcs.
0.4879 €
50 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 928343-3, AMP
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Material: PA 6.6
- Housing Color: natural
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Grid | 5 mm | |
| Number of rows | 1 | |
| Additional parts | unequipped | |
| Version | socket housing | |
| Type of locking | Yes | |
| Contact type | socket | |
| Connection | crimp connection | |
| Pin number | 3 pole | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
