928205-2 | AMP

Socket header, 2 pole, pitch 2.54 mm, straight, natural, 928205-2

Order No.: 58F600
EAN: 4099891004095
MPN:
928205-2
0-0928205-2
Series: AMP-QUICK

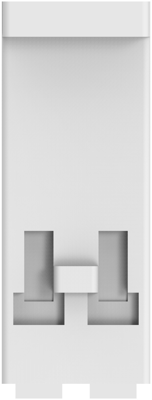

928205-2 AMP PCB Connection Systems Image 1

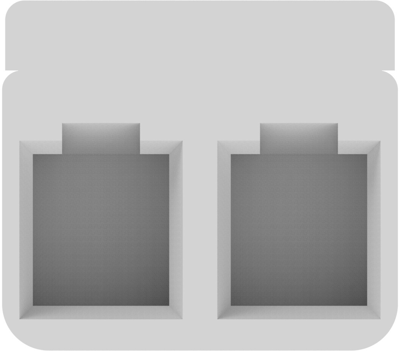

928205-2 AMP PCB Connection Systems Image 2

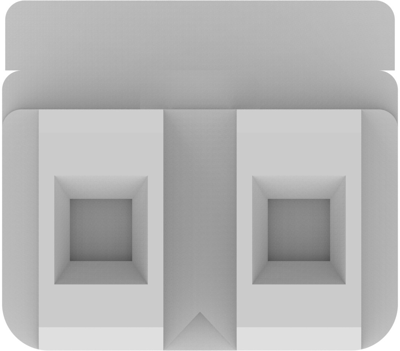

928205-2 AMP PCB Connection Systems Image 3

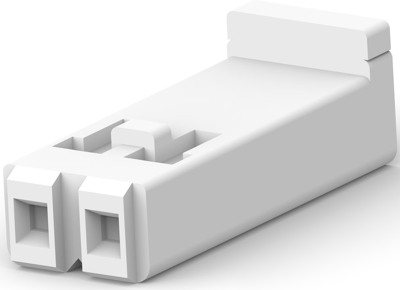

928205-2 AMP PCB Connection Systems Image 4

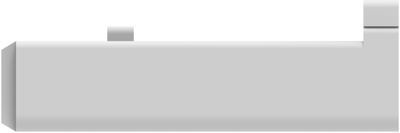

928205-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2451 € *
Available: 5,907 pcs.
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2451 €
10 pcs.
0.2273 €
25 pcs.
0.2118 €
50 pcs.
0.1916 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket headers, bare, type TE Connectivity/AMP ..-0928.

With 2.54 mm grid, crimp connection, latching, with one coding slot after the first and before the last contact chamber; Case: polyester, glass fiber-reinforced, UL 94 V-0. Color: ivory. Rated current: max. 3.0 A. Operating voltage: max. 125 V. Operating temperatures: –40 to +85 °C. Dimensions are calculated as follows. Dimension C: (number of poles –1) x 2.54 mm. Dimension A: C + 2.54 mm. Dimension B: (number of poles –1) x 2.5 mm. Dimension D as of 3-pole: (number of poles –2) x 2.54 mm.

Type: 0-0928205-2, 2-pole

Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version socket header
Rated current 3 A
Orientation straight
Additional parts unequipped
Number of rows 1
Colour natural
Pin number 2 pole
Connection crimp connection
Logistics
Property Value
Country of origin CZ
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
