927669-2 | AMP

Socket header, 16 pole, pitch 6.5 mm, straight, natural, 927669-2

Order No.: 35P4207
EAN: 4099889932997
MPN:
927669-2

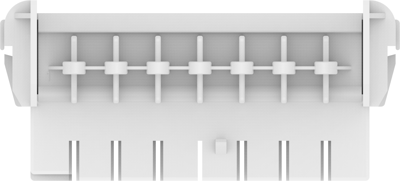

927669-2 AMP PCB Connection Systems Image 1

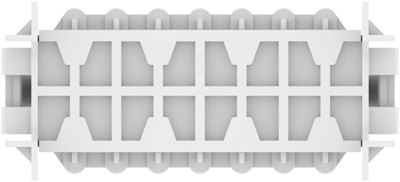

927669-2 AMP PCB Connection Systems Image 2

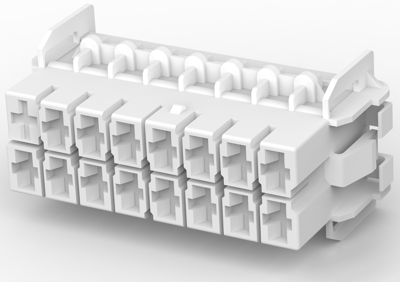

927669-2 AMP PCB Connection Systems Image 3

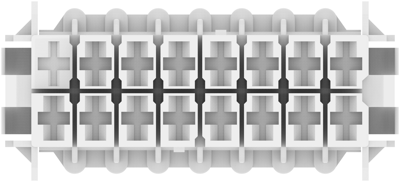

927669-2 AMP PCB Connection Systems Image 4
927669-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.1658 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3,292.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1520 pcs.
2.1658 €

PCB Connection System, 927669-2, AMP

Wire-to-Wire, Wire & Cable, 16 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: PA 6
  • Housing Color: natural
  • Number of positions: 16
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Centerline (Pitch): 6.5 mm
  • Row-to-Row Spacing: 8.5 mm [0.335 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour natural
Type of locking Yes
Grid 6.5 mm
Pin number 16 pole
Version socket header
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Number of rows 2
Logistics
Country of origin MX
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
