926657-4 | AMP

Socket housing, 4 pole, pitch 2.54 mm, straight, black, 926657-4

Order No.: 59F702
EAN: 4099891007300
MPN:
926657-4
0-0926657-4
Series: AMPMODU
926657-4 AMP PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.7374 € *
Available: 534 pcs.
Total Price:
8.69 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7374 €
10 pcs.
1.6065 €
25 pcs.
1.4994 €
50 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale

Connectors, 1 to 13 poles, self-locking, type TE Connectivity/AMP Locking-Clip.

These connectors provide especially fail-safe joints between conductors and 0.63 x 0.63 mm square pins with 2.54 mm grid. After insertion the plugs are positively locked on the pins and cannot be removed by pulling on the wires. The plugs can only be removed by pulling it out with the housing, which unlocks the contact springs inside the housing. The housing is made of glass fiber-reinforced polyamide, self-extinguishing to UL 94 V-0 and delivered bare. Please order the corresponding contact blocks described below separately.

Female connector housings, single-row, bare, type 0-0926.

With 2.54 mm grid. For insertion on 0.63 x 0.63 mm square pins; Housing: polyamide, black, closed on both sides.

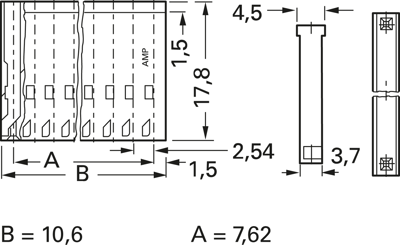

Technical attributes (type, number of poles, dimensions B/A): 0-0926657-4, 4-pole, 10.6/7.62 mm

Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version socket housing
Rated current 3 A
Orientation straight
Additional parts unequipped
Number of rows 1
Colour black
Pin number 4 pole
Connection crimp connection
Logistics
Property Value
Country of origin MX
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
