926475-6 | AMP

Socket housing, 6 pole, pitch 2.54 mm, straight, black, 926475-6

Order No.: 59F4105
EAN: 4099891005993
MPN:
926475-6
0-0926475-6
Series: AMPMODU

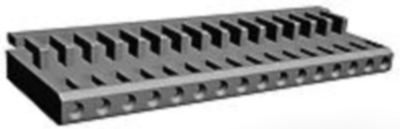

926475-6 AMP PCB Connection Systems Image 1
926475-6 AMP PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.5712 € *
Available: 10,207 pcs.
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale

Bare socket headers for pin headers with protective collar, type Modu IV.

With 2.54 mm grid, single-row or dual-row; Housing: thermoplastic polyester GV, black, compliant with UL 94 V-0. Corresponding contacts are initially described. Please order separately.

Single-row.

Type: 0-0926475-6, 6-pole

Technical specifications
Filter Property Value
Rated voltage 250 V
Rated current 3 A
Grid 2.54 mm
Number of rows 1
Orientation straight
Version socket housing
Colour black
Connection crimp connection
Pin number 6 pole
Additional parts unequipped
Contact type socket
Logistics
Property Value
Country of origin CN
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
