926475-5 | AMP

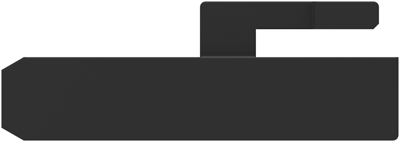

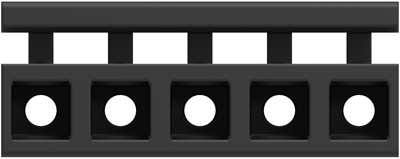

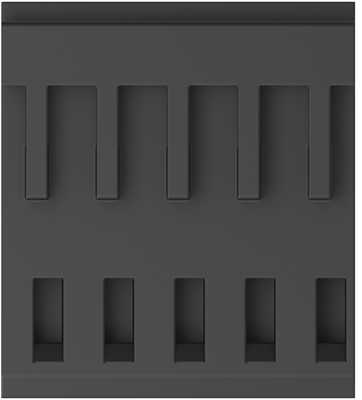

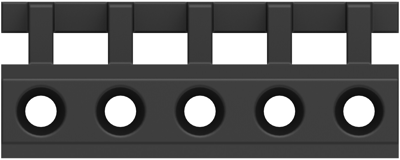

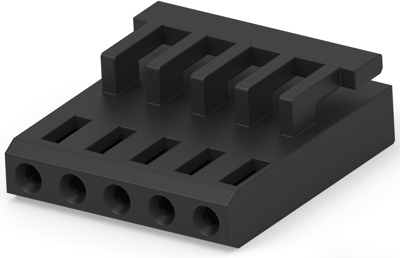

Socket housing, 5 pole, pitch 2.54 mm, straight, black, 926475-5
Unit Price (€ / pc.)
0.8449 € *
Available: 204 pcs.
Available in 5 Days: 9,942 pcs. - if ordered today
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
10 pcs.
0.7854 €
25 pcs.
0.7378 €
50 pcs.
0.6664 €
*incl. VAT plus shipping costs
Subject to prior sale
Bare socket headers for pin headers with protective collar, type Modu IV.
With 2.54 mm grid, single-row or dual-row; Housing: thermoplastic polyester GV, black, compliant with UL 94 V-0. Corresponding contacts are initially described. Please order separately.
Single-row.
Type: 0-0926475-5, 5-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Colour | black | |
| Rated current | 3 A | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Pin number | 5 pole | |
| Orientation | straight | |
| Version | socket housing | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
