925486-1 | AMP

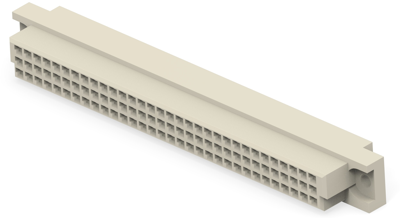

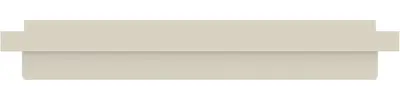

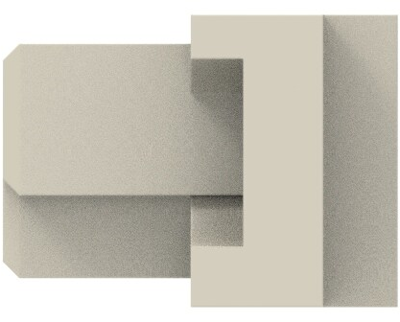

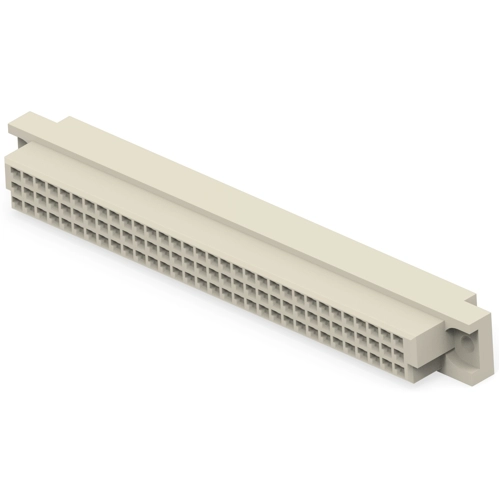

Socket housing, 96 pole, pitch 2.54 mm, straight, gray, 925486-1
Unit Price (€ / pc.)
9.0678 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
9.07 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0678 €
10 pcs.
8.4133 €
25 pcs.
7.8540 €
50 pcs.
7.1400 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 925486-1, AMP
Wire-to-Board, Wire & Cable, 96 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Thermoplastic
- Housing Color: gray
- Number of positions: 96
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Pin number | 96 pole | |
| Version | socket housing | |
| Colour | gray | |
| Grid | 2.54 mm | |
| Rated current | 3 A | |
| Contact type | socket | |
| Number of rows | 3 | |
| Connection | crimp connection | |
| Additional parts | unequipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
