925370-5 | AMP

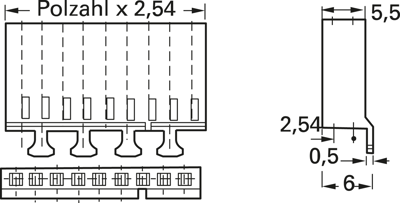

Socket housing, 10 pole, pitch 2.54 mm, straight, green, 925370-5

Order No.: 59F1210
EAN: 4099891004859
MPN:
925370-5
0-0925370-5
Series: AMPMODU

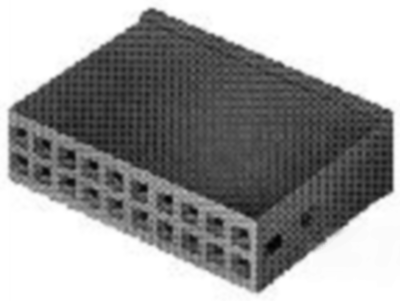

925370-5 AMP PCB Connection Systems Image 1
925370-5 AMP PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.1662 € *
Available: 153 pcs.
Available in 5 Days: 763 pcs. - if ordered today
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1662 €
10 pcs.
1.0829 €
25 pcs.
0.9996 €
50 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale

Bare socket headers, type TE Connectivity/AMP Modu IV.

With 2.54 mm grid, single-row or dual-row, optionally available with or without interlock. The required crimp female contacts are available on separate order. The number of contacts can be reduced as required.

Dual-row with interlock, type ..-0925.

Type: 0-0925370-5, 2 x 5-pole

Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version socket housing
Rated current 3 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour green
Pin number 10 pole
Connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
