925370-4 | AMP

Socket housing, 8 pole, pitch 2.54 mm, straight, green, 925370-4

Order No.: 59F1207
EAN: 4099891004842
MPN:
925370-4
0-0925370-4
Series: AMPMODU

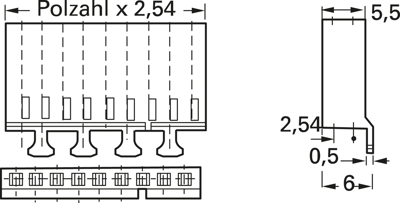

925370-4 AMP PCB Connection Systems Image 1

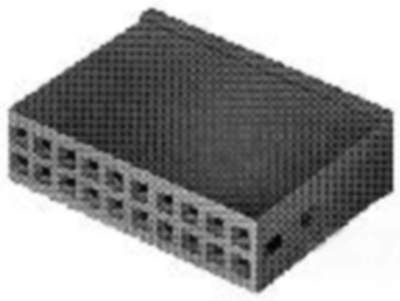

925370-4 AMP PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.9040 € *
Available: 606 pcs.
Available in 5 Days: 1,567 pcs. - if ordered today
Total Price:
9.52 € *
Price list
Quantity
Price per unit*
5 pcs.
1.9040 €
10 pcs.
1.7612 €
25 pcs.
1.6422 €
50 pcs.
1.4875 €
*incl. VAT plus shipping costs
Subject to prior sale

Bare socket headers, type TE Connectivity/AMP Modu IV.

With 2.54 mm grid, single-row or dual-row, optionally available with or without interlock. The required crimp female contacts are available on separate order. The number of contacts can be reduced as required.

Dual-row with interlock, type ..-0925.

Type: 0-0925370-4, 2 x 4-pole

Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version socket housing
Rated current 3 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour green
Pin number 8 pole
Connection crimp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
