925369-8 | AMP

Socket housing, 8 pole, pitch 2.54 mm, straight, green, 925369-8

Order No.: 59F1106
EAN: 4099891004811
MPN:
925369-8
0-0925369-8
Series: AMPMODU

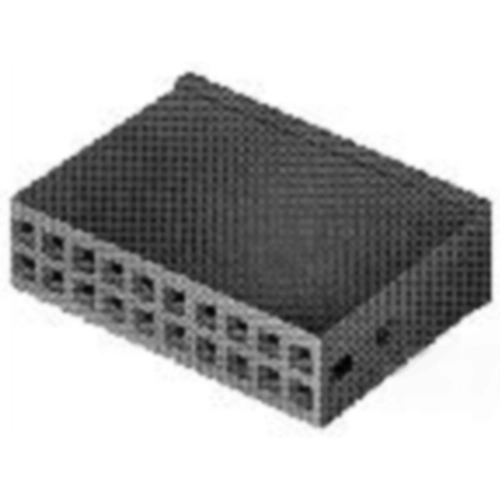

925369-8 AMP PCB Connection Systems Image 1
925369-8 AMP PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.4994 € *
Available: 7 pcs.
Next delivery: 200 pcs. on 2025-08-22
Available in 5 Days: 2,745 pcs. - if ordered today
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4994 €
10 pcs.
1.3923 €
25 pcs.
1.2971 €
50 pcs.
1.1662 €
*incl. VAT plus shipping costs
Subject to prior sale

Bare socket headers, type TE Connectivity/AMP Modu IV.

With 2.54 mm grid, single-row or dual-row, optionally available with or without interlock. The required crimp female contacts are available on separate order. The number of contacts can be reduced as required.

Single-row with interlock, type ..-0925.

Type: 0-0925369-8, 8-pole

Technical specifications
Filter Property Value
Number of rows 1
Pin number 8 pole
Rated voltage 250 V
Type of locking Yes
Additional parts unequipped
Version socket housing
Contact type socket
Orientation straight
Grid 2.54 mm
Connection crimp connection
Colour green
Rated current 3 A
Logistics
Property Value
Customs tariff number 85472000
Country of origin GB
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
