925366-2 | AMP

Socket housing, 2 pole, pitch 2.54 mm, straight, green, 925366-2

Order No.: 59F1000
EAN: 4099891004712
MPN:
925366-2
0-0925366-2
Series: AMPMODU

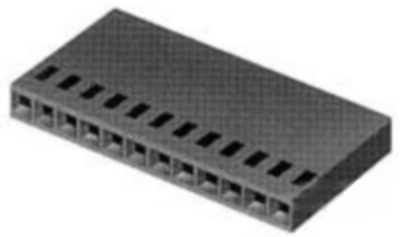

925366-2 AMP PCB Connection Systems Image 1
925366-2 AMP PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.4522 € *
Available: 669 pcs.
Available in 5 Days: 9,000 pcs. - if ordered today
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4522 €
10 pcs.
0.4165 €
25 pcs.
0.3927 €
50 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale

Bare socket headers, type TE Connectivity/AMP Modu IV.

With 2.54 mm grid, single-row or dual-row, optionally available with or without interlock. The required crimp female contacts are available on separate order. The number of contacts can be reduced as required.

Single-row without interlock, type ..-0925.

Type: 0-0925366-2, 2-pole

Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Version socket housing
Rated current 3 A
Rated voltage 250 V
Orientation straight
Additional parts unequipped
Number of rows 1
Colour green
Pin number 2 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
