925076-7 | AMP

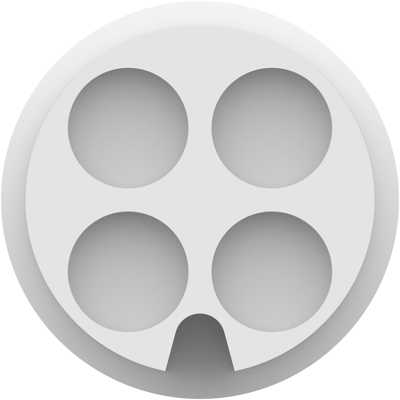

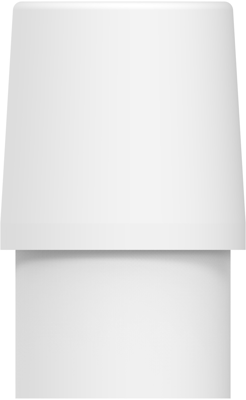

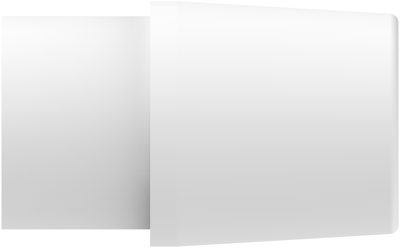

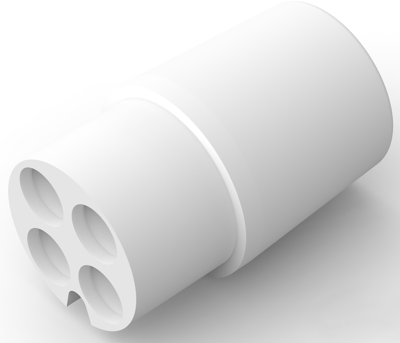

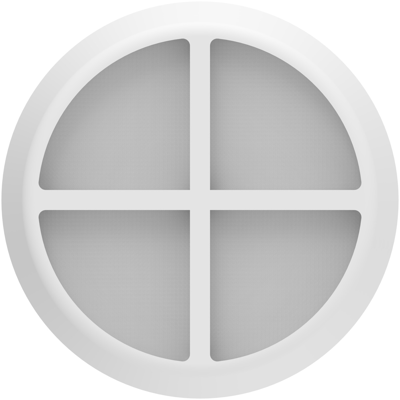

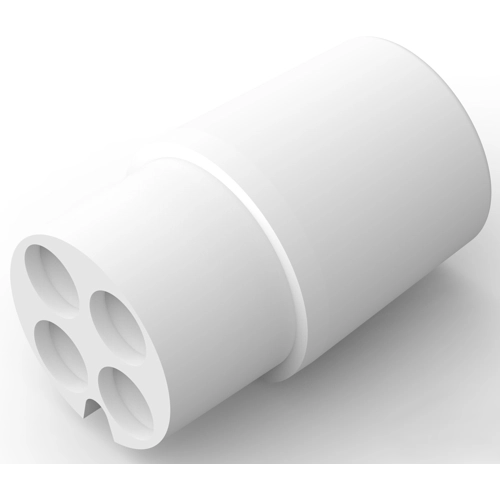

Plug housing, 4 pole, pitch 5.08 mm, straight, natural, 925076-7
Order No.: 34P6640
EAN: 4099889912760
MPN:
925076-7
Unit Price (€ / pc.)
0.6069 € *
Standard delivery time from the manufacturer is: 19 Weeks
PCB Connection System, 925076-7, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: PA 66
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.08 mm
- Row-to-Row Spacing: 5.08 mm [0.2 in]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1.3 A | |
| Version | plug housing | |
| Number of rows | 2 | |
| Connection | crimp connection | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Grid | 5.08 mm | |
| Pin number | 4 pole | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
