917745-1 | AMP

Pin header, 2 pole, pitch 13 mm, straight, natural, 917745-1

Order No.: 72P2258
EAN: 4099891740627
MPN:
917745-1

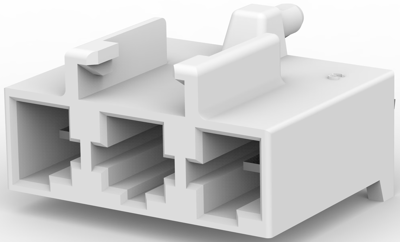

917745-1 AMP PCB Connection Systems Image 1

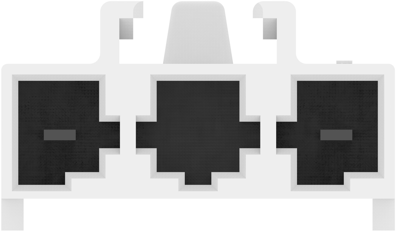

917745-1 AMP PCB Connection Systems Image 2

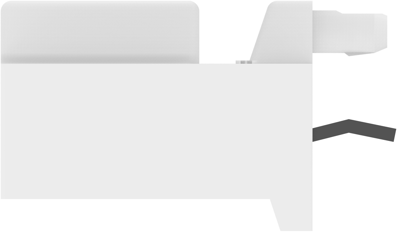

917745-1 AMP PCB Connection Systems Image 3

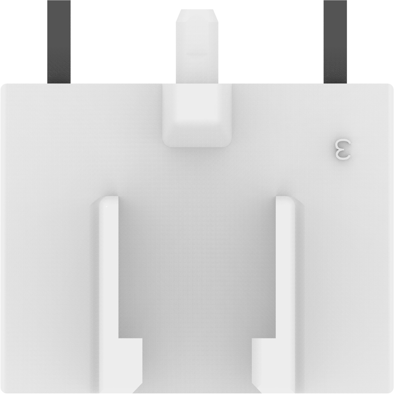

917745-1 AMP PCB Connection Systems Image 4

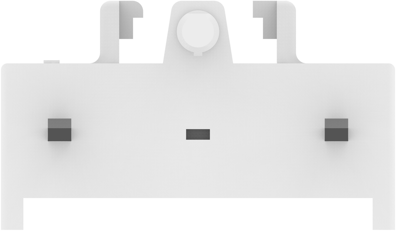

917745-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2733 € *
Available in 5 Days: 6,345 pcs. - if ordered today
Total Price:
254.66 € *
Price list
Quantity
Price per unit*
200 pcs.
1.2733 €
400 pcs.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale

Power double lock connector, 917745-1, AMP

The 917745-1 is a designed for use in power circuit applications and are ideally suited for wiring in refrigerators, air conditioners, washing machines, gas equipment, copying machines and automatic vendingmachines. This product can be used alone by inserting wire-terminated crimp snap-in contacts into the housing.

Features

  • Uses double lock plate on the wire side that helps prevent partial mating of contact
  • Double lock plate compatible with high-count positions of more than 3 rows
  • Design complies with a range of safety standard
  • Fully polarized
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 14 A
Grid 13 mm
Connection plating tin-plated
Pin number 2 pole
Version pin header
Additional parts equipped
Orientation straight
Connection press-fit
Contact type tab
Rated voltage 300 V
Number of rows 1
Logistics
Country of origin KR
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
