917241-8 | AMP

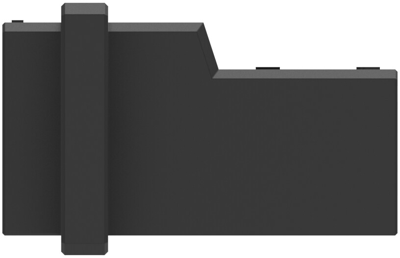

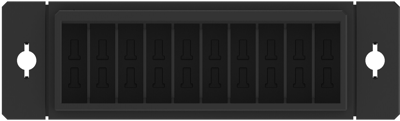

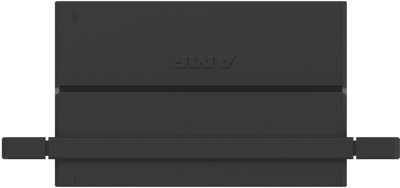

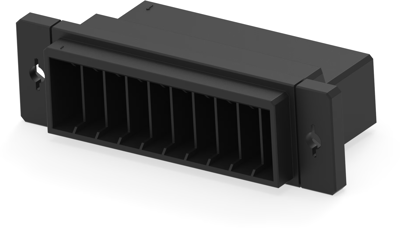

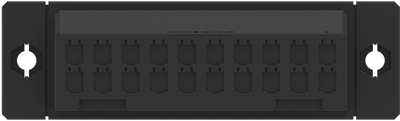

Plug housing, 20 pole, pitch 5.08 mm, straight, black, 917241-8
Unit Price (€ / pc.)
6.9972 € *
Standard delivery time from the manufacturer is: 35 Weeks
Total Price:
7.00 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9972 €
10 pcs.
6.4974 €
25 pcs.
6.0690 €
50 pcs.
5.5216 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 917241-8, AMP
Wire-to-Panel, Wire & Cable, 20 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Tab
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 20
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 5.08 mm
- Row-to-Row Spacing: 5.08 mm [0.2 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | pin | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Additional parts | unequipped | |
| Version | plug housing | |
| Grid | 5.08 mm | |
| Colour | black | |
| Connection | crimp connection | |
| Number of rows | 2 | |
| Pin number | 20 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
