9-338069-4 | AMP

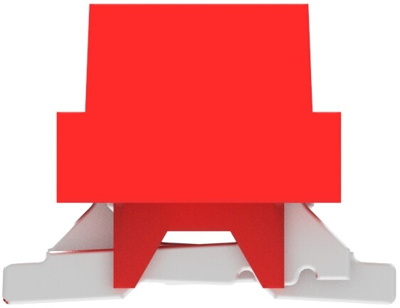

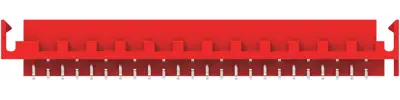

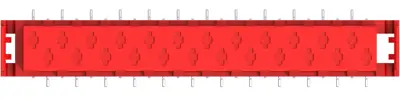

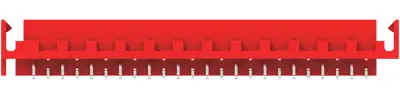

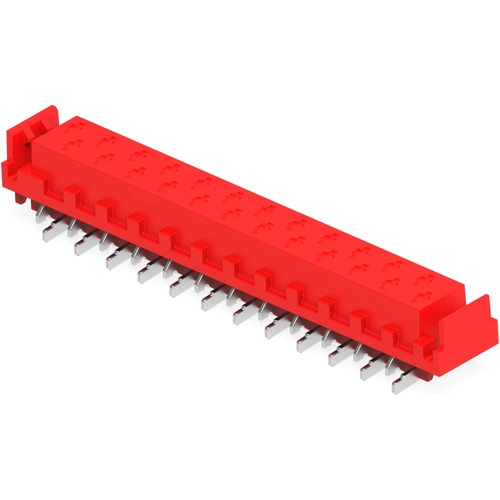

Socket header, 24 pole, pitch 1.27 mm, straight, red, 9-338069-4
Unit Price (€ / pc.)
3.6176 € *
Standard delivery time from the manufacturer is: 24 Weeks
PCB Connection System, 9-338069-4, AMP
Board-to-Board, Printed Circuit Board, Vertical, 24 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: PA 4.6
- Housing Color: red
- Orientation: straight
- Number of positions: 24
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 2 mm [0.059 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 1.5 A | |
| Rated voltage | 100 V | |
| Version | socket header | |
| Number of rows | 2 | |
| Orientation | straight | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Pin number | 24 pole | |
| Grid | 1.27 mm | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | red | |
| Connection plating | tin-plated | |
| Connection | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
