9-215464-0 | AMP

Pin header, 20 pole, pitch 1.27 mm, straight, red, 9-215464-0

Order No.: 58F456
EAN: 4099891003005
MPN:
9-215464-0
9-0215464-0
Series: Micro-MaTch

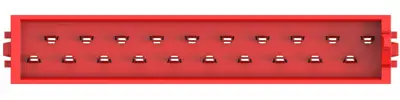

9-215464-0 AMP PCB Connection Systems Image 1

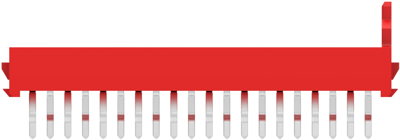

9-215464-0 AMP PCB Connection Systems Image 2

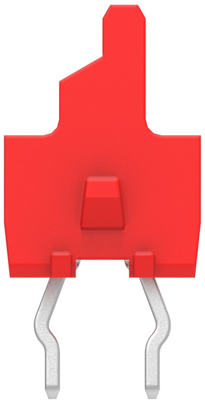

9-215464-0 AMP PCB Connection Systems Image 3

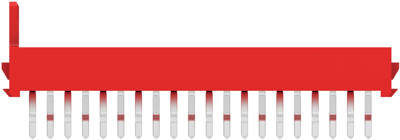

9-215464-0 AMP PCB Connection Systems Image 4

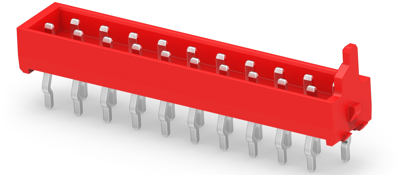

9-215464-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.4038 € *
Available: 219 pcs.
Available in 5 Days: 926 pcs. - if ordered today
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4038 €
10 pcs.
2.2372 €
25 pcs.
2.0825 €
50 pcs.
1.8921 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Sub-D PCB male connectors, male, straight, type ..-0215464.

For PCB mounting.

Technical attributes (type, number of poles, dimension A): 9-0215464-0, 20-pole, A 28.6 mm

Technical specifications
Filter Property Value
Rated voltage 100 V
Orientation straight
Pin number 20 pole
Version pin header
Colour red
Grid 1.27 mm
Rated current 1 A
Type of locking Yes
Contact type pin
Number of rows 2
Connection PCB connection
Connection plating tin-plated
contact surface tin-plated
Additional parts equipped
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
