9-215083-0 | AMP

Pin header, 20 pole, pitch 1.27 mm, straight, red, 9-215083-0

Order No.: 58F476
EAN: 4099891003098
MPN:
9-215083-0
9-0215083-0
Series: Micro-MaTch
9-215083-0 AMP PCB Connection Systems Image 1

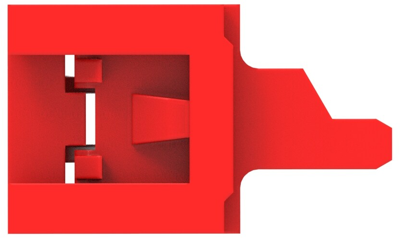

9-215083-0 AMP PCB Connection Systems Image 2

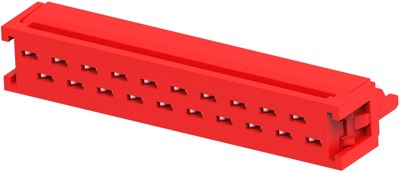

9-215083-0 AMP PCB Connection Systems Image 3

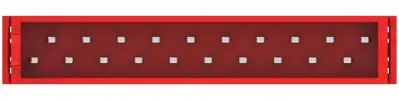

9-215083-0 AMP PCB Connection Systems Image 4

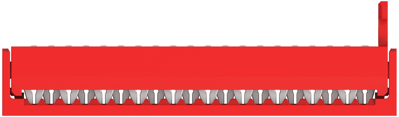

9-215083-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.0944 € *
Available: 235 pcs.
Available in 5 Days: 6,750 pcs. - if ordered today
Total Price:
10.47 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0944 €
10 pcs.
1.9397 €
25 pcs.
1.8088 €
50 pcs.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact. Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Male-on-wire connectors.

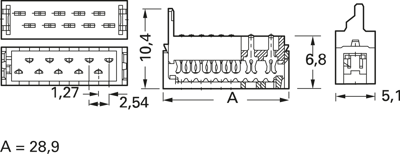

Technical attributes (type, number of poles, dimension A): 9-0215083-0, 20-pole, A 28.9 mm

Technical specifications
Filter Property Value
Version pin header
Orientation straight
Connection plating tin-plated
Pin number 20 pole
Number of rows 2
Additional parts equipped
Grid 1.27 mm
Colour red
Contact type pin
contact surface tin-plated
Rated voltage 100 V
Type of locking Yes
Connection IDC connection
Rated current 1.5 A
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
