9-215079-0 | AMP

Socket header, 20 pole, pitch 1.27 mm, straight, red, 9-215079-0

Order No.: 58F416
EAN: 4099891002480
MPN:
9-215079-0
9-0215079-0
Series: Micro-MaTch

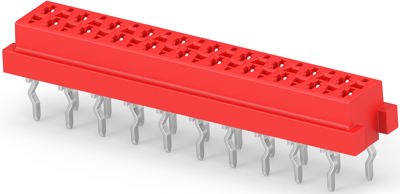

9-215079-0 AMP PCB Connection Systems Image 1

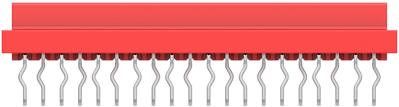

9-215079-0 AMP PCB Connection Systems Image 2

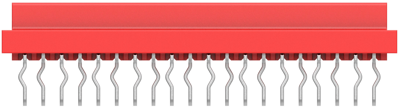

9-215079-0 AMP PCB Connection Systems Image 3

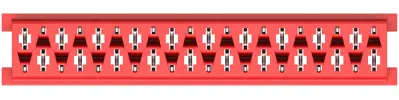

9-215079-0 AMP PCB Connection Systems Image 4

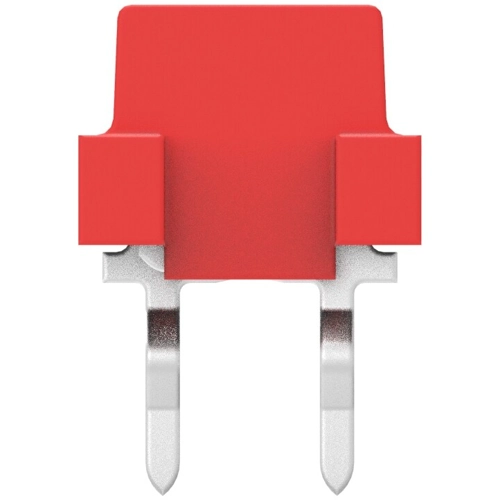

9-215079-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.3324 € *
Available in 5 Days: 904 pcs. - if ordered today
Total Price:
2.33 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3324 €
10 pcs.
2.1658 €
25 pcs.
2.0230 €
50 pcs.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB connectors, type TE Connectivity/AMP Micro-Match.

With 1.27 mm grid. Particularly compact; Housing: PTB, 20 % GV, compliant with UL 94 V-0. Contacts: tin bronze, compliant with DIN 17662/17670, tinned, fully encapsulated. Minimum contact force: 2.0 N. Safe from frictional corrosion through additional positioning spring. Standards and certifications: IEC 512, IEC 68, with UL approbation.

Female connectors, straight, type ..-0215079.

For PCB mounting.

Technical attributes (type, number of poles, dimension B): 9-0215079-0, 20-pole, 27.4 mm

Technical specifications
Filter Property Value
Additional parts equipped
Orientation straight
Pin number 20 pole
Connection PCB connection
Rated current 1 A
Colour red
Type of locking Yes
Grid 1.27 mm
Number of rows 2
contact surface tin-plated
Rated voltage 100 V
Connection plating tin-plated
Version socket header
Contact type socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
